Horn for BMW MINI F56 LCI JCW (2024)

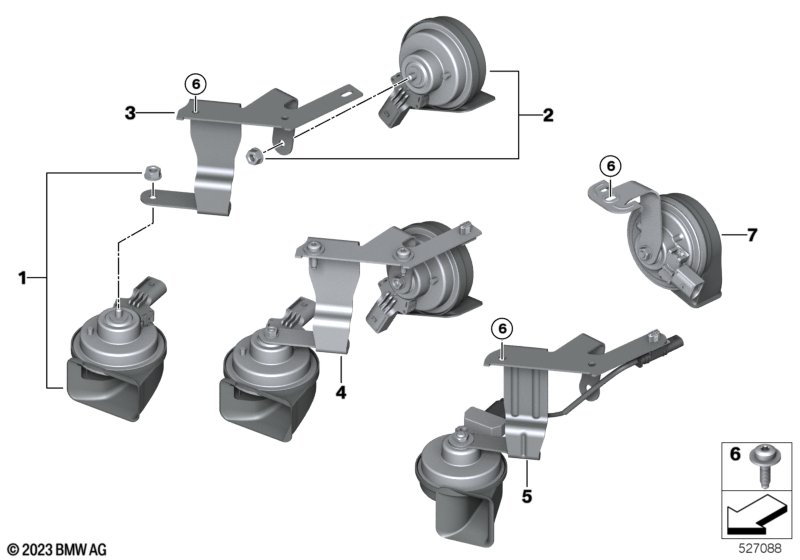

This Horn technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn, high pitch | 1 | 61337401575 | Shop at ECS Tuning | ||||||
| 02 | Horn, low pitch | 1 | 61337401574 | Shop at ECS Tuning | ||||||
| 03 | Bracket for air horns | 1 | 61337401573 | Shop at ECS Tuning | ||||||
| For vehicles with Gulf version and National version China and Hot-climate version and Country control for Brazil 00464 and Country-specific equipment Russia 10323 |
L822A=No L8AAA=No S823A=No S8LBA=No S8LRA=No |
|||||||||
| 04 | Air horns with bracket | 1 | 61338492675 | Shop at ECS Tuning | ||||||
| For vehicles with Gulf version and National version China and Country version, India and Hot-climate version and Country control for Brazil 00464 and Country-specific equipment Russia 10323 |
L822A=Yes L8AAA=Yes L8LAA=Yes S823A=Yes S8LBA=Yes S8LRA=Yes |
|||||||||
| 04 | Air horns with bracket, electronic | 1 | 61335A78E49 | Shop at ECS Tuning | ||||||
| 06 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 07119908698 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI JCW Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the MINI F56 LCI JCW produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Horn, high pitch (Part #61337401575).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the MINI F56 LCI JCW produced during 2024. These technical specifications ensure that parts like the Horn, high pitch (61337401575) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the MINI F56 LCI JCW, you can identify the Horn, high pitch by locating its position on the schematic, which then links to the official BMW part number 61337401575 for the Vehicle electrical system section.
