Wiring harness repair cable antenna/coax for BMW 4 Series G23 Convertible 430i (2024)

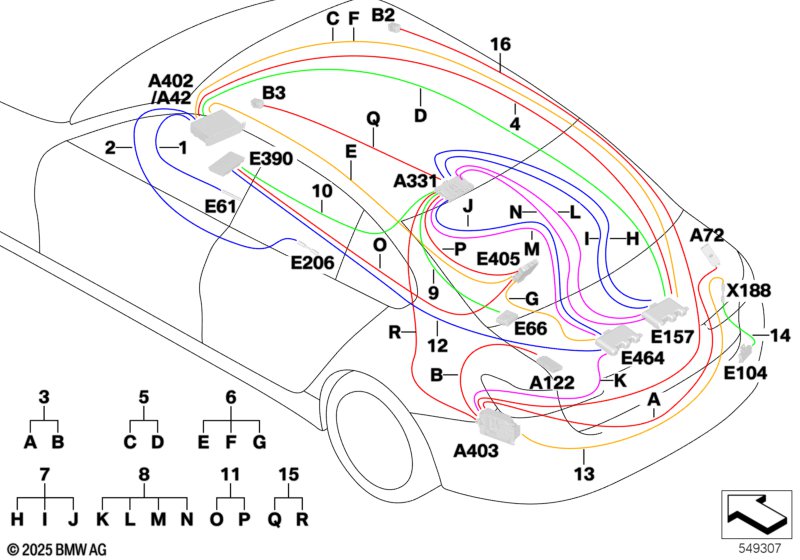

This Wiring harness repair cable antenna/coax technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna cable, Bluetooth antenna | L= 745MM | 1 | 61118718723 | Shop at ECS Tuning | |||||
| 02 | Rep. guide for WLAN cable antenna | L= 1200MM | 1 | 61115A11BA9 | Shop at ECS Tuning | |||||
| 03 | Rep.module aerial lines FM1/ FM2 | 1 | 61115A23087 | Shop at ECS Tuning | ||||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 03 | Rep.module antennas DAB | 1 | 61115A23086 | Shop at ECS Tuning | ||||||
| For vehicles with BMW Live dashboard Plus and BMW Live dashboard Professional |
S6U2A=Yes S6U3A=Yes |
|||||||||
| 04 | Antenna cable GPS | L=5966MM | 1 | 61115A23088 | Shop at ECS Tuning | |||||
| For vehicles with BMW Live dashboard Plus and BMW Live dashboard Professional |
S6U2A=Yes S6U3A=No |
|||||||||
| 04 | Antenna cable GPS | L=5966MM | 1 | 61115A23088 | Shop at ECS Tuning | |||||
| For vehicles with BMW Live dashboard Plus and BMW Live dashboard Professional |
S6U2A=No S6U3A=Yes |
|||||||||
| 04 | Antenna cable GPS | L=5966MM | 1 | 61115A23088 | Shop at ECS Tuning | |||||
| For vehicles with Phoning with wireless charging and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6NVA=Yes S6U2A=Yes S6U3A=Yes |
|||||||||
| 05 | Repair module storage wireless charging | 1 | 61115A23091 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6NVA=Yes S6U2A=Yes S6U3A=No |
|||||||||
| 05 | Repair module storage wireless charging | 1 | 61115A23091 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6NVA=Yes S6U2A=No S6U3A=Yes |
|||||||||
| 05 | Repair module storage wireless charging | 1 | 61115A23091 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6NWA=Yes S6U2A=Yes S6U3A=Yes |
|||||||||
| 06 | Repair module storage wireless charging | 1 | 61115A23092 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6NWA=Yes S6U2A=Yes S6U3A=No |
|||||||||
| 06 | Repair module storage wireless charging | 1 | 61115A23092 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6NWA=Yes S6U2A=No S6U3A=Yes |
|||||||||
| 06 | Repair module storage wireless charging | 1 | 61115A23092 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 07 | Rep.module antenna wires ATM | 1 | 61115A23093 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
|||||||||
| 07 | Rep.module antenna wires ATM | 1 | 61115A23093 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
|||||||||
| 07 | Rep.module antenna wires ATM | 1 | 61115A23093 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 09 | Rep.module antenna wires ATM | 1 | 61115A23095 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
|||||||||
| 09 | Rep.module antenna wires ATM | 1 | 61115A23095 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
|||||||||
| 09 | Rep.module antenna wires ATM | 1 | 61115A23095 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Phoning with wireless charging |
S6AEA=Yes S6AFA=Yes S6NVA=Yes |
|||||||||
| 10 | Rep.module antenna wires ATM | 1 | 61115A23267 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Phoning with wireless charging |
S6AEA=Yes S6AFA=No S6NVA=Yes |
|||||||||
| 10 | Rep.module antenna wires ATM | 1 | 61115A23267 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Phoning with wireless charging |
S6AEA=No S6AFA=Yes S6NVA=Yes |
|||||||||
| 10 | Rep.module antenna wires ATM | 1 | 61115A23267 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Phoning with wireless charging |
S6AEA=Yes S6AFA=Yes S6NWA=Yes |
|||||||||
| 11 | Rep.module antenna wires ATM | 1 | 61115A23268 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Phoning with wireless charging |
S6AEA=Yes S6AFA=No S6NWA=Yes |
|||||||||
| 11 | Rep.module antenna wires ATM | 1 | 61115A23268 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices and Statutory emergency request and Phoning with wireless charging |
S6AEA=No S6AFA=Yes S6NWA=Yes |
|||||||||
| 11 | Rep.module antenna wires ATM | 1 | 61115A23268 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging |
S6NVA=Yes |
|||||||||
| 12 | Repair module storage wireless charging | 1 | 61115A23089 | Shop at ECS Tuning | ||||||
| 13 | Rep.module aerial lines RAM | 1 | 61115A23097 | Shop at ECS Tuning | ||||||
| For vehicles with TV function |
S601A=Yes |
|||||||||
| 14 | Rep.module aerial lines RAM | TV3 | 1 | 61115A224A9 | Shop at ECS Tuning | |||||
| 15 | Repair cable microphone | L= 5220MM | 1 | 61115A47E82 | Shop at ECS Tuning | |||||
| 16 | Repair cable microphone | L= 6230MM | 1 | 61115A47E79 | Shop at ECS Tuning | |||||
