Single parts for rear window cleaning for BMW MINI F56 LCI Cooper (2024)

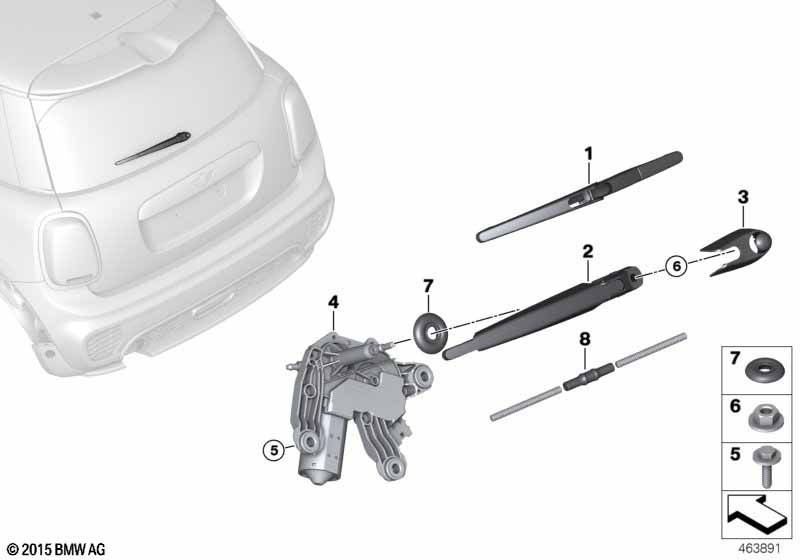

This Single parts for rear window cleaning technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper blade, rear | 1 | 61615A404F6 | Shop at ECS Tuning | ||||||
| 02 | Wiper arm | 1 | 61617411251 | Shop at ECS Tuning | ||||||
| 03 | Cap | 1 | 61617347624 | Shop at ECS Tuning | ||||||
| 04 | Rear window wiper motor | 1 | 67637329850 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X25-U2 | 3 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M8-Z2 | 1 | 07147144953 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Grommet | 1 | 61629809960 | Shop at ECS Tuning | ||||||
| 08 | Rep. kit for hose, wiper system | 1 | 61667208073 | $16.98 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI Cooper Single parts for rear window cleaning?
- This technical diagram illustrates the Single parts for rear window cleaning within the Vehicle electrical system group for the MINI F56 LCI Cooper produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Wiper blade, rear (Part #61615A404F6).
- Which models use the hardware listed in this Single parts for rear window cleaning?
- The hardware and components featured in the Single parts for rear window cleaning are specific to the MINI F56 LCI Cooper produced during 2024. These technical specifications ensure that parts like the Wiper blade, rear (61615A404F6) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for rear window cleaning assembly?
- Each item in the Single parts for rear window cleaning corresponds to the numbered list below the illustration. For the MINI F56 LCI Cooper, you can identify the Wiper blade, rear by locating its position on the schematic, which then links to the official BMW part number 61615A404F6 for the Vehicle electrical system section.
