Switch unit, center console for BMW 6 Series E63 LCI 650i (2010)

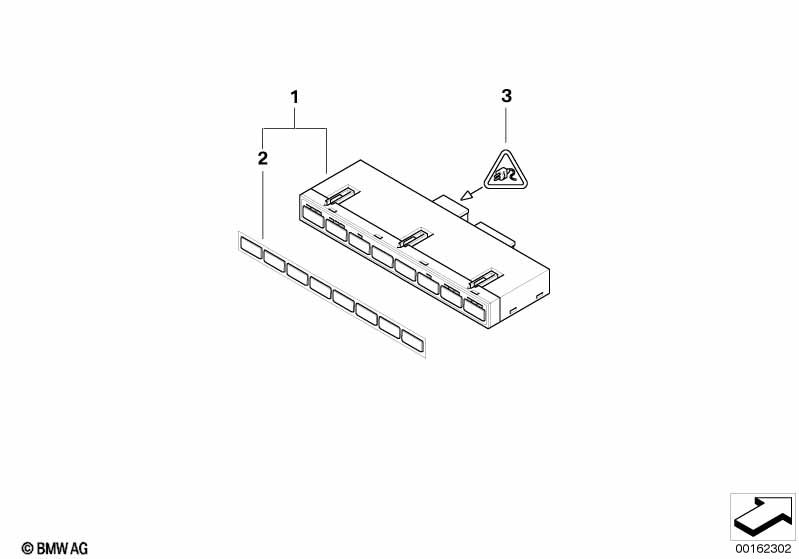

This Switch unit, center console technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Unused buttons should be covered with caps! |
|||||||||
| 01 | Rep. set, center console switch. center | 1 | 09/2006 | 61319169123 | $580.76 | Shop at ECS Tuning | ||||
| 02 | Covering cap | 1 | 61316938645 | $42.28 | Shop at ECS Tuning | |||||
| 03 | Socket housing | 8 POL. | 4 | 61136931894 | $2.27 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 1 | 61136931880 | Shop at ECS Tuning | |||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 1 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,0- 2,5 MM² SN | 1 | 61138364838 | $0.62 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 LCI 650i Switch unit, center console?
- This technical diagram illustrates the Switch unit, center console within the Vehicle electrical system group for the 6 Series E63 LCI 650i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Rep. set, center console switch. center (Part #61319169123).
- Which models use the hardware listed in this Switch unit, center console?
- The hardware and components featured in the Switch unit, center console are specific to the 6 Series E63 LCI 650i produced during 2010. These technical specifications ensure that parts like the Rep. set, center console switch. center (61319169123) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch unit, center console assembly?
- Each item in the Switch unit, center console corresponds to the numbered list below the illustration. For the 6 Series E63 LCI 650i, you can identify the Rep. set, center console switch. center by locating its position on the schematic, which then links to the official BMW part number 61319169123 for the Vehicle electrical system section.
