Repair cable main wiring harn.shielded for BMW 2 Series G42 230i (2025)

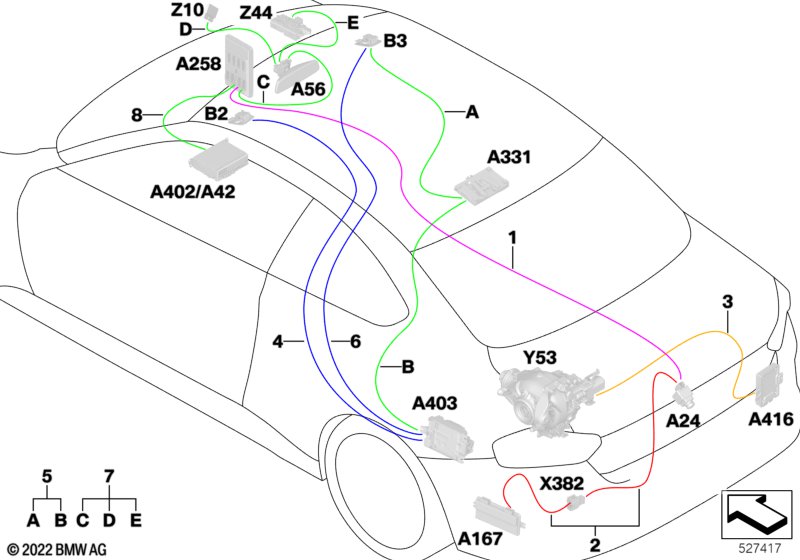

This Repair cable main wiring harn.shielded technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 230i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair cable sheathed cable with shield | L= 4895MM | 1 | 61115A3D282 | Shop at ECS Tuning | |||||
| 02 | Repair cable sheathed cable with shield | 1 | 61115A3D382 | Shop at ECS Tuning | ||||||
| 03 | Repair cable sheathed cable with shield | 1 | 61115A3D2A0 | Shop at ECS Tuning | ||||||
| 04 | Repair cable sheathed cable with shield | L= 5044MM | 1 | 61115A3DDC3 | Shop at ECS Tuning | |||||
| 05 | Repair module sheathed cable with shield | 1 | 61115A3DDC5 | Shop at ECS Tuning | ||||||
| 06 | Repair cable sheathed cable with shield | L= 6064MM | 1 | 61115A3DDC7 | Shop at ECS Tuning | |||||
| 07 | Repair module sheathed cable with shield | L= 4242MM | 1 | 61115A4DC50 | Shop at ECS Tuning | |||||
| 08 | Repair cable sheathed cable with shield | L= 2493MM | 1 | 61115A4D9E7 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series G42 230i Repair cable main wiring harn.shielded?
- This technical diagram illustrates the Repair cable main wiring harn.shielded within the Vehicle electrical system group for the 2 Series G42 230i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Repair cable sheathed cable with shield (Part #61115A3D282).
- Which models use the hardware listed in this Repair cable main wiring harn.shielded?
- The hardware and components featured in the Repair cable main wiring harn.shielded are specific to the 2 Series G42 230i produced during 2025. These technical specifications ensure that parts like the Repair cable sheathed cable with shield (61115A3D282) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Repair cable main wiring harn.shielded assembly?
- Each item in the Repair cable main wiring harn.shielded corresponds to the numbered list below the illustration. For the 2 Series G42 230i, you can identify the Repair cable sheathed cable with shield by locating its position on the schematic, which then links to the official BMW part number 61115A3D282 for the Vehicle electrical system section.
