48-V battery for BMW 2 Series U06 Active Tourer 230eX (2025)

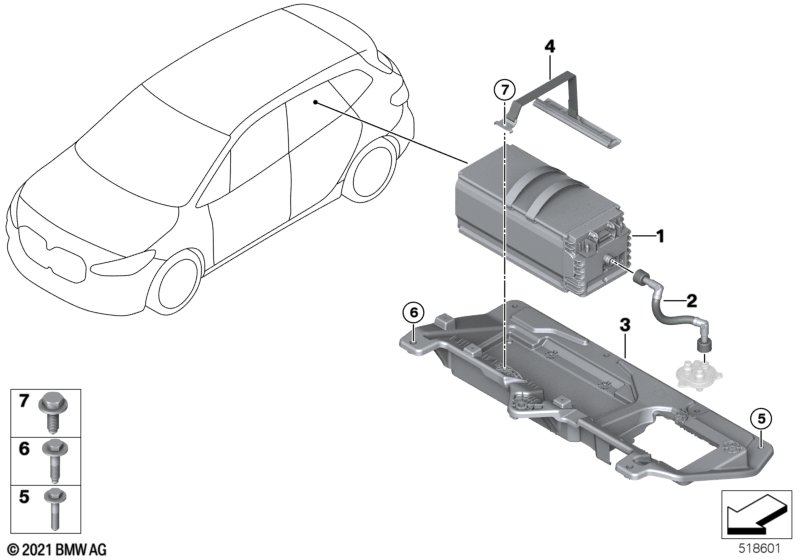

This 48-V battery technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 48-V battery | 2.0 | 1 | 61215A64DD1 | Shop at ECS Tuning | |||||
| 02 | Vent hose for battery | 1 | 61215A27148 | Shop at ECS Tuning | ||||||
| 03 | Battery tray, 48-V battery | 1 | 61219855632 | Shop at ECS Tuning | ||||||
| 04 | Battery clamp rail | 1 | 61219855631 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M8X45-TC-U2-8.8 | 4 | 07119909767 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M10X45-PC-U2-8. | 3 | 07119909487 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X25 | 3 | 07147075050 | $1.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 230eX 48-V battery?
- This technical diagram illustrates the 48-V battery within the Vehicle electrical system group for the 2 Series U06 Active Tourer 230eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the 48-V battery (Part #61215A64DD1).
- Which models use the hardware listed in this 48-V battery?
- The hardware and components featured in the 48-V battery are specific to the 2 Series U06 Active Tourer 230eX produced during 2025. These technical specifications ensure that parts like the 48-V battery (61215A64DD1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 48-V battery assembly?
- Each item in the 48-V battery corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 230eX, you can identify the 48-V battery by locating its position on the schematic, which then links to the official BMW part number 61215A64DD1 for the Vehicle electrical system section.
