Roof function center for BMW 2 Series U06 Active Tourer 220d (2024)

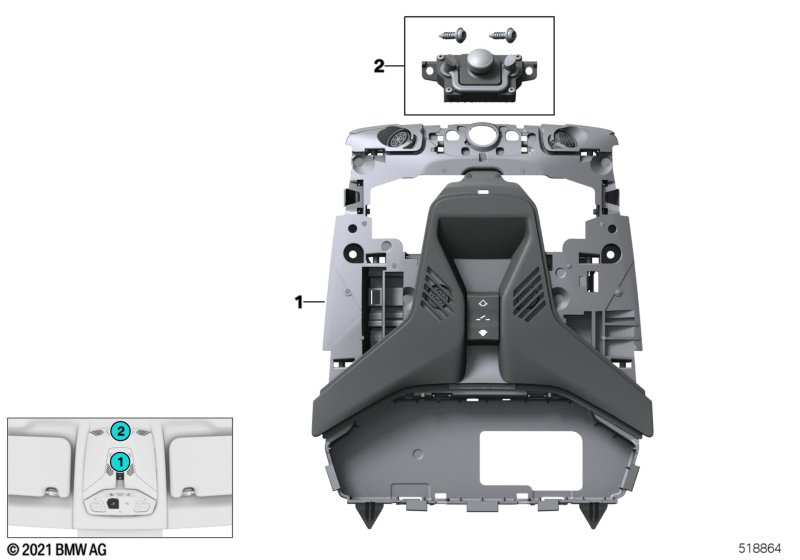

This Roof function center technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The FZD is always supplied without a camera and must be ordered separately if there is a defect. |
|||||||||
| For vehicles with Alarm system and Electric panoramic roof and Interior camera |
S302A=Yes S402A=Yes S4NRA=No |
|||||||||
| 01 | Roof function center | 1 | 11/2024 | 61315B477C3 | Shop at ECS Tuning | |||||
| 01 | Roof function center | MDS DWA | 1 | 03/2025 | 61315B5C824 | Shop at ECS Tuning | ||||
| 01 | Roof function center | MDS DWA | 1 | 61315B68487 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Electric panoramic roof and Interior camera |
S302A=Yes S402A=No S4NRA=No |
|||||||||
| 01 | Roof function center | 1 | 11/2024 | 61315B477C1 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Electric panoramic roof and Interior camera |
S302A=No S402A=Yes S4NRA=Yes |
|||||||||
| 01 | Roof function center | MDS | 1 | 11/2024 | 61315B477C7 | Shop at ECS Tuning | ||||
| 01 | Roof function center | MDS | 1 | 03/2025 | 61315B5C828 | Shop at ECS Tuning | ||||
| 01 | Roof function center | MDS | 1 | 61315B68491 | Shop at ECS Tuning | |||||
| 01 | Roof function center | MDS | 1 | 61315B477C7 | Shop at ECS Tuning | |||||
| 01 | Roof function center | MDS | 1 | 03/2025 | 61315B5C828 | Shop at ECS Tuning | ||||
| 01 | Roof function center | MDS | 1 | 61315B68491 | Shop at ECS Tuning | |||||
| For vehicles with Interior camera |
S4NRA=Yes |
|||||||||
| 02 | Camera | 1 | 61315A57850 | Shop at ECS Tuning | ||||||
