Control unit door driver's side for BMW 2 Series U06 Active Tourer 230eX (2025)

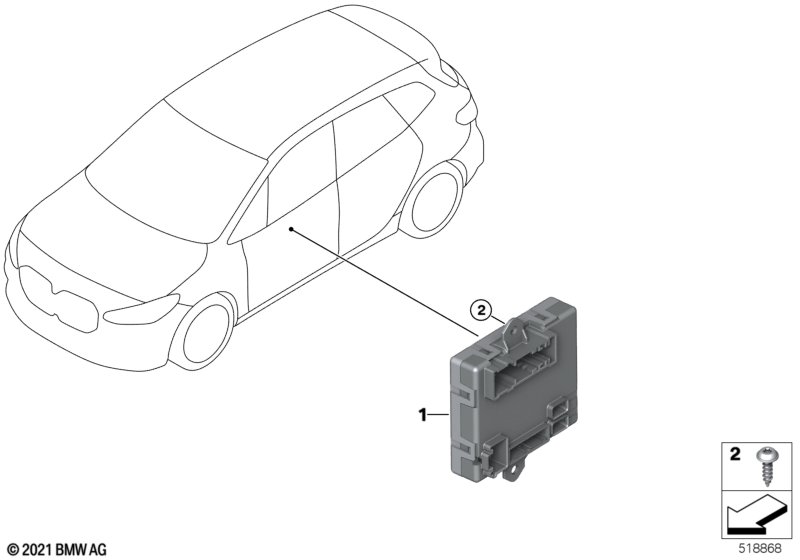

This Control unit door driver's side technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package and Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional |
P337A=No S313A=No S430A=No S459A=No S45AA=No S5ASA=No S5AUA=No |
|||||||||
| 01 | Control unit door driver's side front | BASIC | 1 | 61355B547B0 | Shop at ECS Tuning | |||||
| 01 | Control unit door driver's side front | BASIC RD | 1 | 61355B547B6 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Fold-in outside mirror and Interior/outside mirror with auto dip and Seat adjuster, electric, with memory and Seat adjuster, electric, with memory and Driving Assistant and Driving assistant professional |
P337A=Yes S313A=Yes S430A=Yes S459A=Yes S45AA=Yes S5ASA=Yes S5AUA=Yes |
|||||||||
| 01 | Control unit door driver's side front | HIGH | 1 | 61355B547A4 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | TS 5X16 | 1 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 230eX Control unit door driver's side?
- This technical diagram illustrates the Control unit door driver's side within the Vehicle electrical system group for the 2 Series U06 Active Tourer 230eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Control unit door driver's side front (Part #61355B547B0).
- Which models use the hardware listed in this Control unit door driver's side?
- The hardware and components featured in the Control unit door driver's side are specific to the 2 Series U06 Active Tourer 230eX produced during 2025. These technical specifications ensure that parts like the Control unit door driver's side front (61355B547B0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit door driver's side assembly?
- Each item in the Control unit door driver's side corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 230eX, you can identify the Control unit door driver's side front by locating its position on the schematic, which then links to the official BMW part number 61355B547B0 for the Vehicle electrical system section.
