Radio remote control receiver for BMW 2 Series U06 Active Tourer 218i (2024)

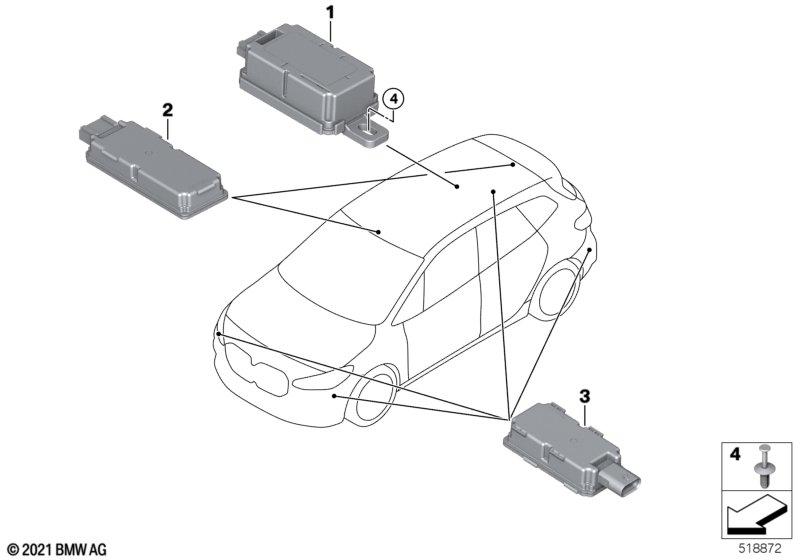

This Radio remote control receiver technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 01 | Radio remote control receiver | 315 MHZ | 1 | 61357928649 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 315 MHz |
S876A=No |
|||||||||
| 01 | Receiver radio remote control | 434 MHZ | 1 | 61357928662 | Shop at ECS Tuning | |||||
| 02 | Receiver radio remote control | FBD5 | 1 | 03/2024 | 61355A81724 | ENDED | Shop at ECS Tuning | |||
| 02 | Radio remote control receiver | FBD5 | 1 | 07/2024 | 61355A9DDC9 | Shop at ECS Tuning | ||||
| 02 | Radio remote control receiver | FBD5 | 1 | 03/2025 | 61355B4E028 | Shop at ECS Tuning | ||||
| 02 | Radio remote control receiver | FBD5 | 1 | 03/2025 | 61355B60517 | Shop at ECS Tuning | ||||
| 02 | Radio remote control receiver | FBD5 | 1 | 61355B60517 | Shop at ECS Tuning | |||||
| 02 | Radio remote control receiver | FBD5 | 1 | 61355A59199 | Shop at ECS Tuning | |||||
| 03 | Receiver radio remote control | FBD5S | 2 | 03/2024 | 61355A81725 | ENDED | Shop at ECS Tuning | |||
| 03 | Radio remote control receiver | FBD5S | 2 | 07/2024 | 61355A9DDD0 | Shop at ECS Tuning | ||||
| 03 | Radio remote control receiver | FBD5S | 2 | 03/2025 | 61355B4E029 | Shop at ECS Tuning | ||||
| 03 | Radio remote control receiver | FBD5S | 2 | 61355B60518 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | D = 6MM | 1 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 218i Radio remote control receiver?
- This technical diagram illustrates the Radio remote control receiver within the Vehicle electrical system group for the 2 Series U06 Active Tourer 218i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Radio remote control receiver (Part #61357928649).
- Which models use the hardware listed in this Radio remote control receiver?
- The hardware and components featured in the Radio remote control receiver are specific to the 2 Series U06 Active Tourer 218i produced during 2024. These technical specifications ensure that parts like the Radio remote control receiver (61357928649) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio remote control receiver assembly?
- Each item in the Radio remote control receiver corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 218i, you can identify the Radio remote control receiver by locating its position on the schematic, which then links to the official BMW part number 61357928649 for the Vehicle electrical system section.
