Switch unit steering column for BMW 2 Series U06 Active Tourer 225eX (2025)

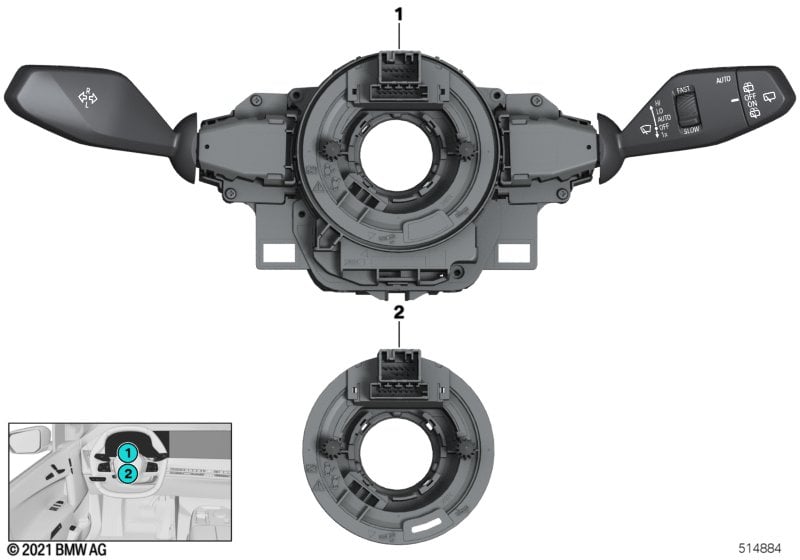

This Switch unit steering column technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 225eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Steering wheel heater and Driving Assistant Plus and Driving assistant professional and PREPARATION FOR STEERING WHEEL HEATING and Preparation Driving Assistant Plus |
S248A=Yes S5ATA=Yes S5AUA=Yes S9QRA=Yes S9QVA=Yes |
|||||||||
| 01 | Switch unit steering column | 1 | 61315A31C10 | Shop at ECS Tuning | ||||||
| 01 | Steering column switch cluster | 2FPC HW | 1 | 61315A56465 | Shop at ECS Tuning | |||||
| For vehicles with Steering wheel heater and Driving Assistant Plus and Driving assistant professional and PREPARATION FOR STEERING WHEEL HEATING and Preparation Driving Assistant Plus |
S248A=No S5ATA=No S5AUA=No S9QRA=No S9QVA=No |
|||||||||
| 01 | Switch unit steering column | 1 | 61315A56471 | Shop at ECS Tuning | ||||||
| 02 | Coil spring cartridge | 2FPC | 1 | 61315A332C4 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 225eX Switch unit steering column?
- This technical diagram illustrates the Switch unit steering column within the Vehicle electrical system group for the 2 Series U06 Active Tourer 225eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Switch unit steering column (Part #61315A31C10).
- Which models use the hardware listed in this Switch unit steering column?
- The hardware and components featured in the Switch unit steering column are specific to the 2 Series U06 Active Tourer 225eX produced during 2025. These technical specifications ensure that parts like the Switch unit steering column (61315A31C10) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch unit steering column assembly?
- Each item in the Switch unit steering column corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 225eX, you can identify the Switch unit steering column by locating its position on the schematic, which then links to the official BMW part number 61315A31C10 for the Vehicle electrical system section.
