Power dist./ B+ distributor front for BMW 2 Series U06 Active Tourer 230eX (2025)

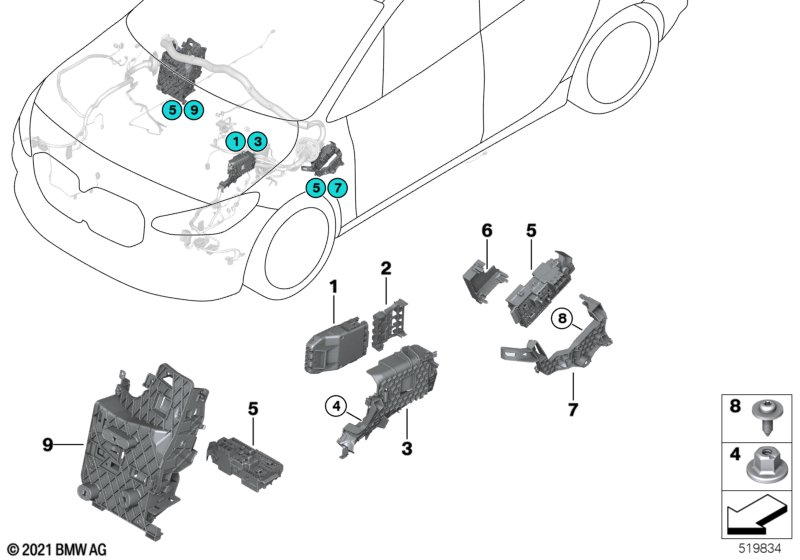

This Power dist./ B+ distributor front technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | B+ junction terminal | 300/400W | 1 | 61149827016 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Trailer coupling preparation |
S3ACA=Yes S8SLA=Yes |
|||||||||
| 01 | B+ junction terminal | 600W | 1 | 61149827017 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Trailer coupling preparation |
S3ACA=Yes S8SLA=No |
|||||||||
| 01 | B+ junction terminal | 600W | 1 | 61149827017 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling and Trailer coupling preparation |
S3ACA=No S8SLA=Yes |
|||||||||
| 01 | B+ junction terminal | 600W | 1 | 61149827017 | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 61145A31DD6 | Shop at ECS Tuning | ||||||
| 03 | Bracket for B+ junction point | 1 | 61139855653 | Shop at ECS Tuning | ||||||
| 04 | Plastic nut for coarse threaded pin | M6 | 5 | 07147336362 | Shop at ECS Tuning | |||||
| 05 | Power distribution box | 1 | 61148720724 | Shop at ECS Tuning | ||||||
| 06 | Cover for fuse and relay module | 1 | 61135A2C3F4 | Shop at ECS Tuning | ||||||
| 07 | Bracket current distributor | 1 | 61135A02E50 | Shop at ECS Tuning | ||||||
| 08 | Screw | 5X16 | 1 | 07129907471 | Shop at ECS Tuning | |||||
| 09 | Bracket current distributor | 1 | 61135A08DA5 | Shop at ECS Tuning | ||||||
