Single components for fuse housing for BMW 5 Series G60 Sedan 520dX (2025)

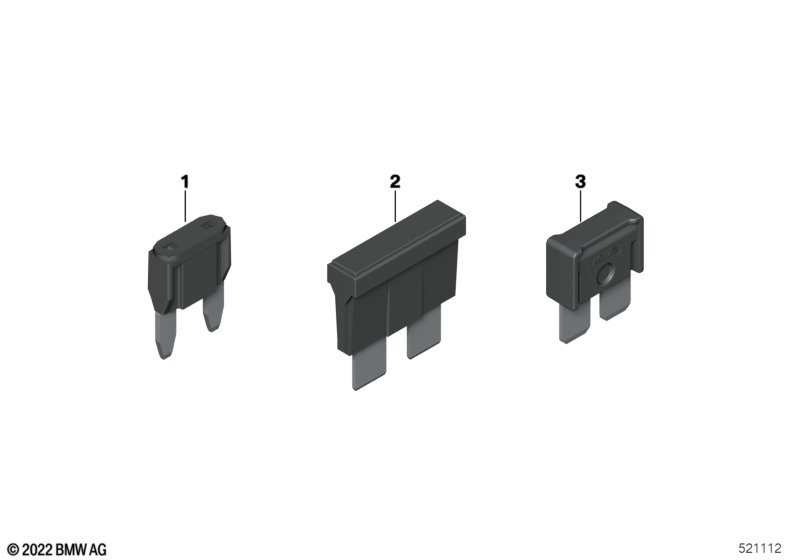

This Single components for fuse housing technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuse mini gray | 2 A | X | 61135A04C39 | Shop at ECS Tuning | |||||
| 01 | Fuse mini lilac | 3 A | X | 61135A04C40 | Shop at ECS Tuning | |||||
| 01 | Fuse Mini, rosa | 4A | X | 61136917400 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Fuse Mini, yellow-brown | 5A | X | 61136917401 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Fuse Mini, brown | 7,5A | X | 61136917402 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Fuse Mini, red | 10A | X | 61136917403 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Fuse Mini, blue | 15A | X | 61136917404 | $0.77 | Shop at ECS Tuning | ||||
| 01 | Fuse Mini, yellow | 20A | X | 61136942071 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Fuse light brown | 5A | X | 61131372523 | Shop at ECS Tuning | |||||
| 02 | Fuse brown | 7,5A | X | 61131372524 | $0.58 | Shop at ECS Tuning | ||||
| 02 | Fuse red | 10A | X | 61131372525 | Shop at ECS Tuning | |||||
| 02 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 02 | Fuse Maxi, blue | 60A | X | 61136914636 | $2.15 | Shop at ECS Tuning | ||||
| 02 | Fuse green | 30A | X | 61139826750 | Shop at ECS Tuning | |||||
| 02 | Fuse orange | 40A | X | 61139826751 | Shop at ECS Tuning | |||||
| 02 | Fuse | 20A | X | 61146953470 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fuse | 50A | X | 61139843209 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
