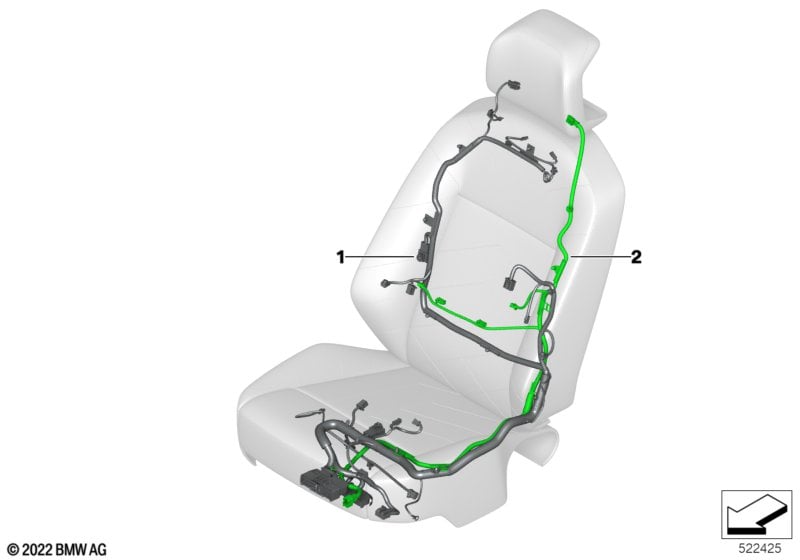

Wiring harness, seat, front for BMW 7 Series G70 740dX (2025)
This Wiring harness, seat, front technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set seat left | 1 | 61125A75772 | Shop at ECS Tuning | ||||||
| 01 | Wiring set seat right | 1 | 61125A757B1 | Shop at ECS Tuning | ||||||
| For vehicles with Multifunction seat driver and passenger |
S4FMA=Yes |
|||||||||
| 01 | Wiring set seat right | 1 | 61125A75776 | Shop at ECS Tuning | ||||||
| For vehicles with Executive Lounge Seating |
S4F4A=Yes |
|||||||||
| 01 | Wiring harness seat L Executive Lounge | 1 | 61125A75768 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger |
S4F4A=No S4FMA=Yes |
|||||||||
| 01 | Wiring set seat left | 1 | 61125A75749 | Shop at ECS Tuning | ||||||
| For vehicles with Multifunction seat driver and passenger |
S4FMA=Yes |
|||||||||
| 02 | Audio wiring harness seat left | 1 | 61125A74576 | NoS | Shop at ECS Tuning | |||||
| 02 | Audio wiring harness seat right | 1 | 61125A74577 | Shop at ECS Tuning | ||||||
| For vehicles with Executive Lounge Seating and Multifunction seat driver and passenger |
S4F4A=Yes S4FMA=Yes |
|||||||||
| 02 | Audio wiring harness seat right | 1 | 61125A74577 | NoS | Shop at ECS Tuning | |||||
| 02 | Audio wiring harness seat left | 1 | 61125A74589 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
