Control unit bracket Auto.Park.Assistant for BMW 7 Series G70 750eX (2025)

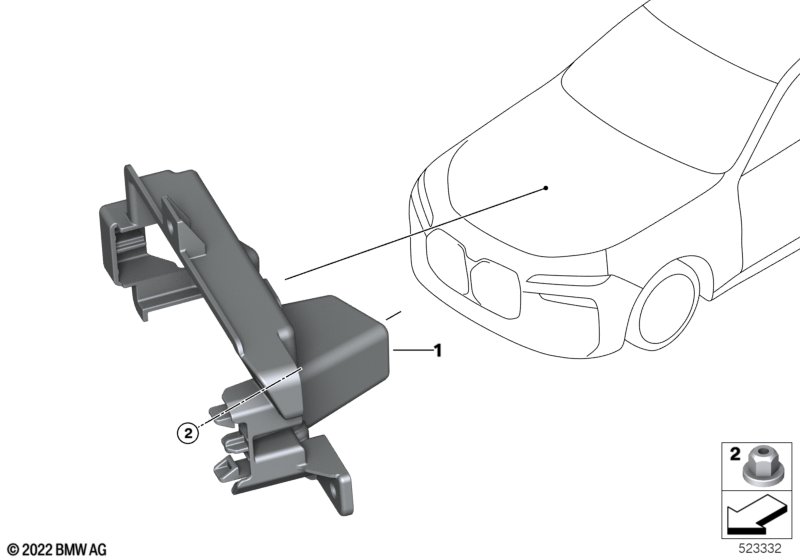

This Control unit bracket Auto.Park.Assistant technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW Personal pilot |
S5DXA=Yes |
|||||||||
| 01 | Control unit bracket Auto.Park.Assistant | 1 | 61359447116 | Shop at ECS Tuning | ||||||
| 02 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 750eX Control unit bracket Auto.Park.Assistant?
- This technical diagram illustrates the Control unit bracket Auto.Park.Assistant within the Vehicle electrical system group for the 7 Series G70 750eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Control unit bracket Auto.Park.Assistant (Part #61359447116).
- Which models use the hardware listed in this Control unit bracket Auto.Park.Assistant?
- The hardware and components featured in the Control unit bracket Auto.Park.Assistant are specific to the 7 Series G70 750eX produced during 2025. These technical specifications ensure that parts like the Control unit bracket Auto.Park.Assistant (61359447116) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit bracket Auto.Park.Assistant assembly?
- Each item in the Control unit bracket Auto.Park.Assistant corresponds to the numbered list below the illustration. For the 7 Series G70 750eX, you can identify the Control unit bracket Auto.Park.Assistant by locating its position on the schematic, which then links to the official BMW part number 61359447116 for the Vehicle electrical system section.
