Radio remote control receiver for BMW 7 Series G70 740dX (2025)

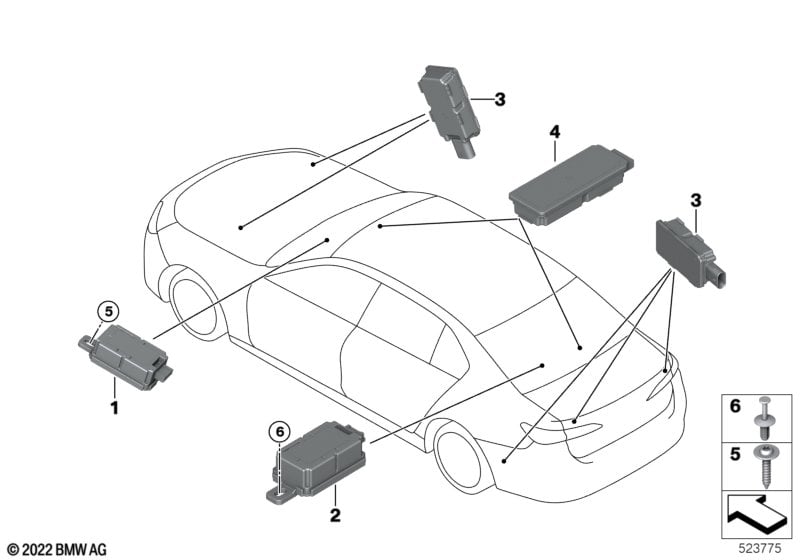

This Radio remote control receiver technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Radio frequency 315 MHz |
S876A=Yes |
|||||||||
| 02 | Radio remote control receiver | 315 MHZ | 1 | 07/2025 | 61357928685 | Shop at ECS Tuning | ||||
| For vehicles with Radio frequency 315 MHz |
S876A=No |
|||||||||
| 02 | Radio remote control receiver | 434 MHZ | 1 | 07/2025 | 61357928684 | Shop at ECS Tuning | ||||
| For vehicles with STEUERUNG FAHRZEUGZUGANG |
S8TVA=No |
|||||||||
| 03 | Radio remote control receiver | FBD5S | 5 | 03/2025 | 61355B4E029 | Shop at ECS Tuning | ||||
| 04 | Radio remote control receiver | FBD5 | 2 | 03/2025 | 61355B4E028 | Shop at ECS Tuning | ||||
| 04 | Radio remote control receiver | FBD5 | 2 | 03/2025 | 61355B60517 | Shop at ECS Tuning | ||||
| 04 | Radio remote control receiver | FBD5 | 2 | 61355B60517 | Shop at ECS Tuning | |||||
| 04 | Receiver radio remote control | FBD5 | 2 | 61355A6A019 | ENDED | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | D = 6MM | 1 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
