Control unit for seat module for BMW 5 Series G60 Sedan 520d (2025)

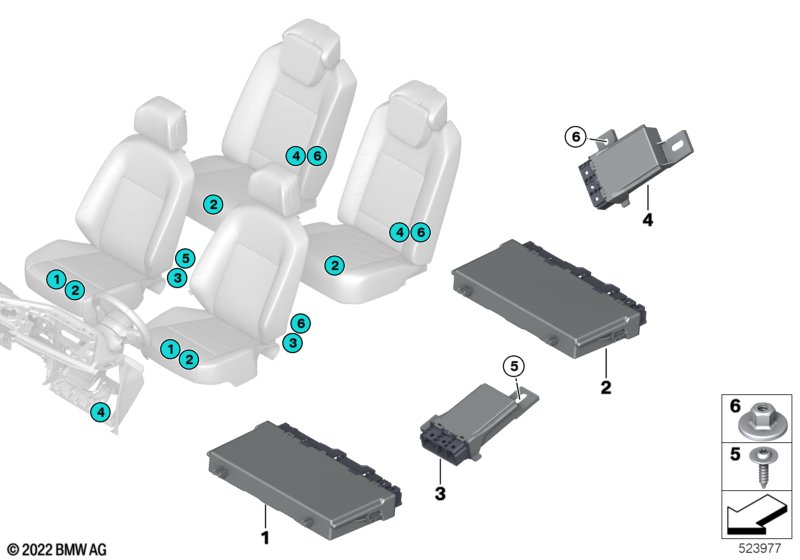

This Control unit for seat module technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Seat module | 2 | 61355B4F7C1 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=Yes S4MAA=Yes |
|||||||||
| 02 | Seat module | 2 | 61355B4F7C0 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=Yes S4MAA=No |
|||||||||
| 02 | Seat module | 2 | 61355B4F7C0 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=No S4MAA=Yes |
|||||||||
| 02 | Seat module | 2 | 61355B4F7C0 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=No S4MAA=No |
|||||||||
| 02 | Seat module | 2 | 61355B4F7C0 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=Yes S4MAA=Yes |
|||||||||
| 02 | Seat module | 2 | 61355B4F7C0 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=Yes S4MAA=No |
|||||||||
| 02 | Seat module | 2 | 61355B4F7C0 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=No S4MAA=Yes |
|||||||||
| 02 | Seat module | 2 | 61355B4F7C0 | Shop at ECS Tuning | ||||||
| For vehicles with MULTIFUNCTION SEAT IN THE REAR COMPT and Warmth Comfort Package |
S46AA=Yes S4HCA=Yes |
|||||||||
| 03 | Seat module | 1 | 61355A6A442 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, front and rear and Warmth Comfort Package |
S4HAA=Yes S4HCA=Yes |
|||||||||
| 03 | Seat module | 2 | 61355A6A442 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, front and rear and Warmth Comfort Package |
S4HAA=Yes S4HCA=No |
|||||||||
| 03 | Seat module | 2 | 61355A6A442 | Shop at ECS Tuning | ||||||
| For vehicles with Seat heating, front and rear and Warmth Comfort Package |
S4HAA=No S4HCA=Yes |
|||||||||
| 03 | Seat module | 2 | 61355A6A442 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Comfort seat with memory and M multifunction seat |
S453A=No S456A=No S4MAA=No |
|||||||||
| 03 | Seat module | 1 | 61355A6A442 | Shop at ECS Tuning | ||||||
| For vehicles with Warmth Comfort Package |
S4HCA=Yes |
|||||||||
| 05 | Fillister head screw | DELTA PT4X16 | 1 | 07149197038 | Shop at ECS Tuning | |||||
| For vehicles with MULTIFUNCTION SEAT IN THE REAR COMPT and Warmth Comfort Package |
S46AA=Yes S4HCA=Yes |
|||||||||
| 06 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with MULTIFUNCTION SEAT IN THE REAR COMPT and Seat heating, front and rear and Warmth Comfort Package |
S46AA=No S4HAA=Yes S4HCA=Yes |
|||||||||
| 06 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with MULTIFUNCTION SEAT IN THE REAR COMPT and Seat heating, front and rear and Warmth Comfort Package |
S46AA=No S4HAA=Yes S4HCA=No |
|||||||||
| 06 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with MULTIFUNCTION SEAT IN THE REAR COMPT and Seat heating, front and rear and Warmth Comfort Package |
S46AA=No S4HAA=No S4HCA=Yes |
|||||||||
| 06 | Plastic capnut with washer | D=22MM | 4 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520d Control unit for seat module?
- This technical diagram illustrates the Control unit for seat module within the Vehicle electrical system group for the 5 Series G60 Sedan 520d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Seat module (Part #61355B4F7C1).
- Which models use the hardware listed in this Control unit for seat module?
- The hardware and components featured in the Control unit for seat module are specific to the 5 Series G60 Sedan 520d produced during 2025. These technical specifications ensure that parts like the Seat module (61355B4F7C1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit for seat module assembly?
- Each item in the Control unit for seat module corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520d, you can identify the Seat module by locating its position on the schematic, which then links to the official BMW part number 61355B4F7C1 for the Vehicle electrical system section.
