Horn for BMW 7 Series G70 M760eX (2025)

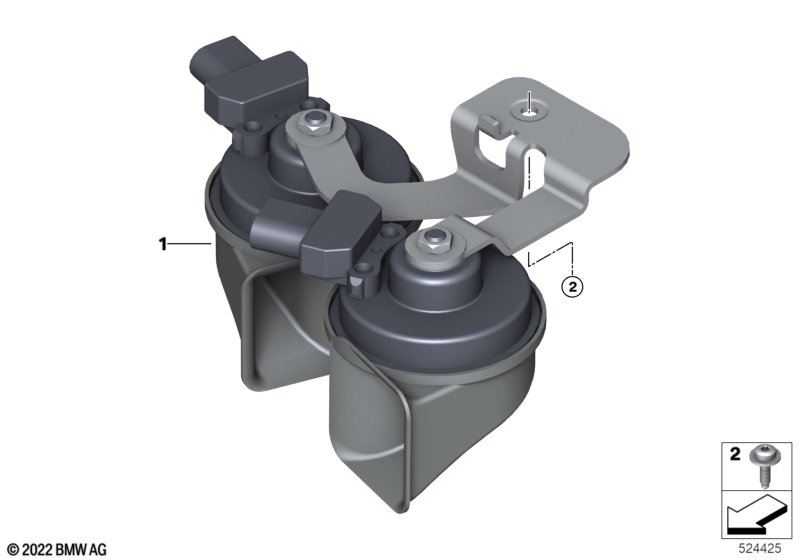

This Horn technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder with fanfare horns | 1 | 61337011169 | Shop at ECS Tuning | ||||||
| 02 | Countersunk screw | M6X20-PCU2-10.9 | 1 | 07119908698 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the 7 Series G70 M760eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Holder with fanfare horns (Part #61337011169).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the 7 Series G70 M760eX produced during 2025. These technical specifications ensure that parts like the Holder with fanfare horns (61337011169) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the Holder with fanfare horns by locating its position on the schematic, which then links to the official BMW part number 61337011169 for the Vehicle electrical system section.
