Rep.cable f.main wiring harness - front for BMW 5 Series G61 Touring 540dX (2025)

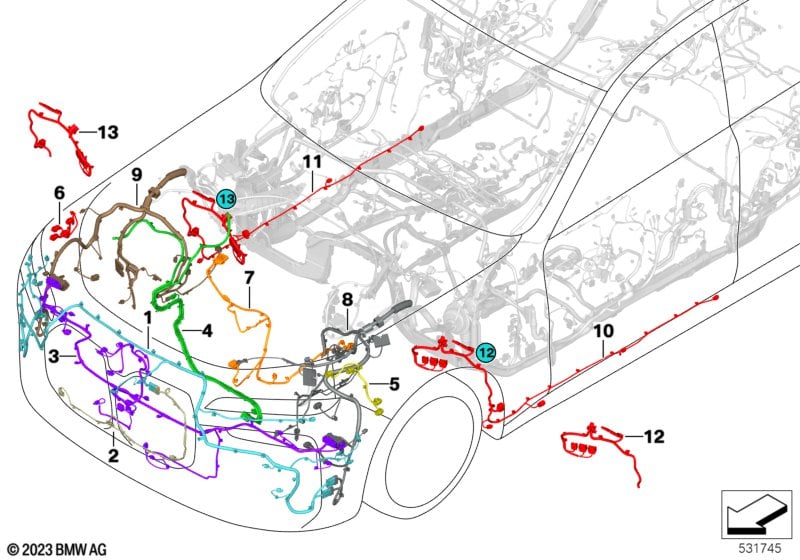

This Rep.cable f.main wiring harness - front technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 540dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness bumper front | 1 | 61125A86169 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional and BMW Personal pilot |
S5AUA=Yes S5DXA=Yes |
|||||||||
| 01 | Wiring harness bumper front | 1 | 61125A86170 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional and BMW Personal pilot |
S5AUA=Yes S5DXA=No |
|||||||||
| 01 | Wiring harness bumper front | 1 | 61125A86170 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional and BMW Personal pilot |
S5AUA=No S5DXA=Yes |
|||||||||
| 01 | Wiring harness bumper front | 1 | 61125A86170 | Shop at ECS Tuning | ||||||
| 03 | Wiring harness front end | 1 | 61125B328A3 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 03 | Wiring harness front end | 1 | 61125B328A4 | NoS | Shop at ECS Tuning | |||||
| 04 | Adapter lead EPS | 1 | 61125A5BCC9 | Shop at ECS Tuning | ||||||
| 08 | Front left repair wiring set | 1 | 61125B43517 | NoS | Shop at ECS Tuning | |||||
| 09 | Front right repair wiring set | 1 | 61125B43519 | NoS | Shop at ECS Tuning | |||||
| 10 | Repair wiring harness door sill left | 1 | 61125B43528 | NoS | Shop at ECS Tuning | |||||
| 11 | Repair wiring harness door sill right | 1 | 61125B43530 | NoS | Shop at ECS Tuning | |||||
| 12 | Repair wiring set f front lft wheelhouse | 1 | 61125B43523 | NoS | Shop at ECS Tuning | |||||
| 13 | Repair wiring set f frnt rght wheelhouse | 1 | 61125B43525 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
