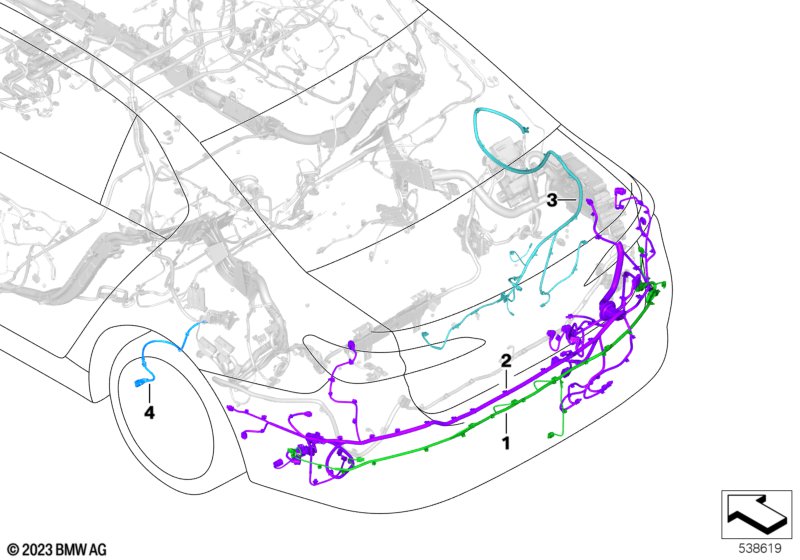

Rep.cable f.main wiring harness - rear for BMW 7 Series G70 740d (2022)
This Rep.cable f.main wiring harness - rear technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness rear bumper | 1 | 61125A476A5 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Wiring harness rear bumper | 1 | 61125A476C1 | Shop at ECS Tuning | ||||||
| 02 | Rear repair wiring set | 1 | 61125A7C9E0 | Shop at ECS Tuning | ||||||
| 03 | Repair wiring set for trunk lid | 1 | 61125A7C9D9 | Shop at ECS Tuning | ||||||
| 04 | Cable electric parking brake | 2 | 61125A31675 | Shop at ECS Tuning | ||||||
