High-voltage battery control units for BMW 2 Series U06 Active Tourer 225eX (2025)

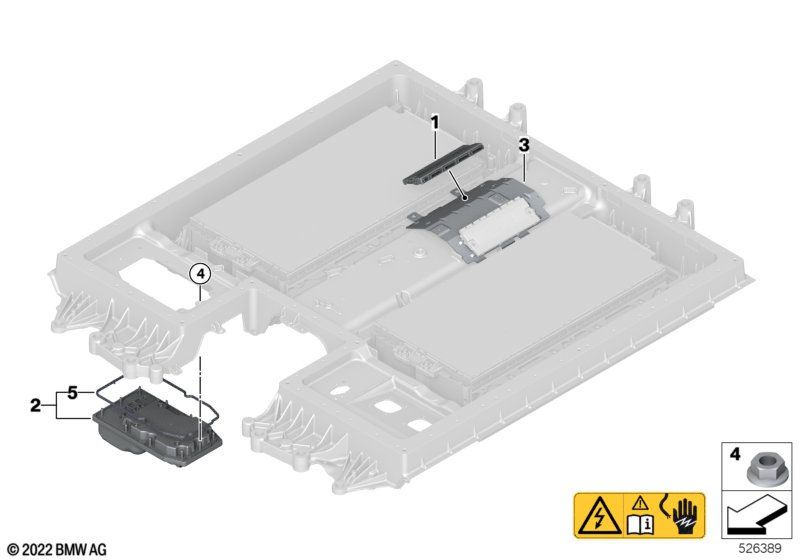

This High-voltage battery control units technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 225eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cell supervision circuit 3 | 2 | 61279797818 | Shop at ECS Tuning | ||||||
| 02 | Electronic memory management | 1 | 61278880208 | Shop at ECS Tuning | ||||||
| 03 | Holder | 1 | 61279797876 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 10 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Seal | 1 | 61278856036 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series U06 Active Tourer 225eX High-voltage battery control units?
- This technical diagram illustrates the High-voltage battery control units within the Vehicle electrical system group for the 2 Series U06 Active Tourer 225eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cell supervision circuit 3 (Part #61279797818).
- Which models use the hardware listed in this High-voltage battery control units?
- The hardware and components featured in the High-voltage battery control units are specific to the 2 Series U06 Active Tourer 225eX produced during 2025. These technical specifications ensure that parts like the Cell supervision circuit 3 (61279797818) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-voltage battery control units assembly?
- Each item in the High-voltage battery control units corresponds to the numbered list below the illustration. For the 2 Series U06 Active Tourer 225eX, you can identify the Cell supervision circuit 3 by locating its position on the schematic, which then links to the official BMW part number 61279797818 for the Vehicle electrical system section.
