Gear selector switch for BMW 7 Series G70 740i (2025)

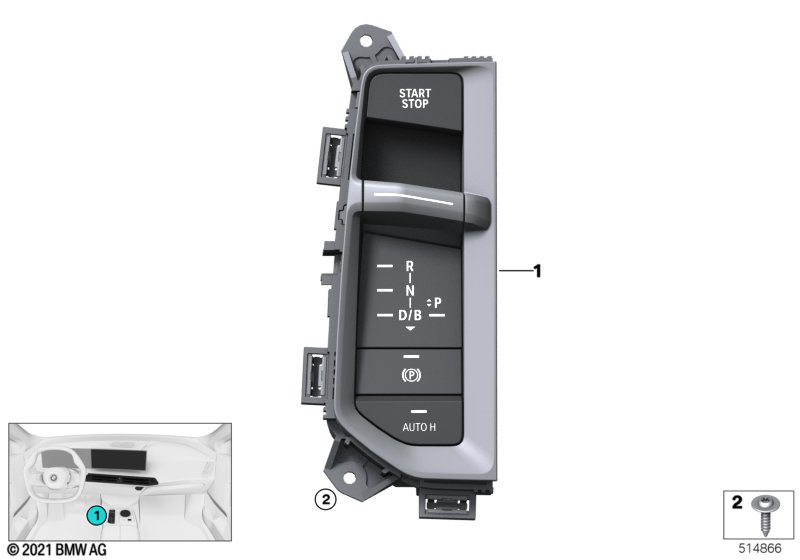

This Gear selector switch technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Glass application Craftedclarity |
S4A2A=No |
|||||||||
| 01 | Gear selector switch | LHD BASIS ICE | 1 | 61315A767A1 | Shop at ECS Tuning | |||||
| For vehicles with Glass application Craftedclarity |
S4A2A=Yes |
|||||||||
| 01 | Gear selector switch | LHD GLAS ICE | 1 | 07/2024 | 61315B3CAE7 | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | DELTA PT4X16 | 5 | 07149197038 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740i Gear selector switch?
- This technical diagram illustrates the Gear selector switch within the Vehicle electrical system group for the 7 Series G70 740i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Gear selector switch (Part #61315A767A1).
- Which models use the hardware listed in this Gear selector switch?
- The hardware and components featured in the Gear selector switch are specific to the 7 Series G70 740i produced during 2025. These technical specifications ensure that parts like the Gear selector switch (61315A767A1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Gear selector switch assembly?
- Each item in the Gear selector switch corresponds to the numbered list below the illustration. For the 7 Series G70 740i, you can identify the Gear selector switch by locating its position on the schematic, which then links to the official BMW part number 61315A767A1 for the Vehicle electrical system section.
