48-V battery for BMW 7 Series G70 740d (2023)

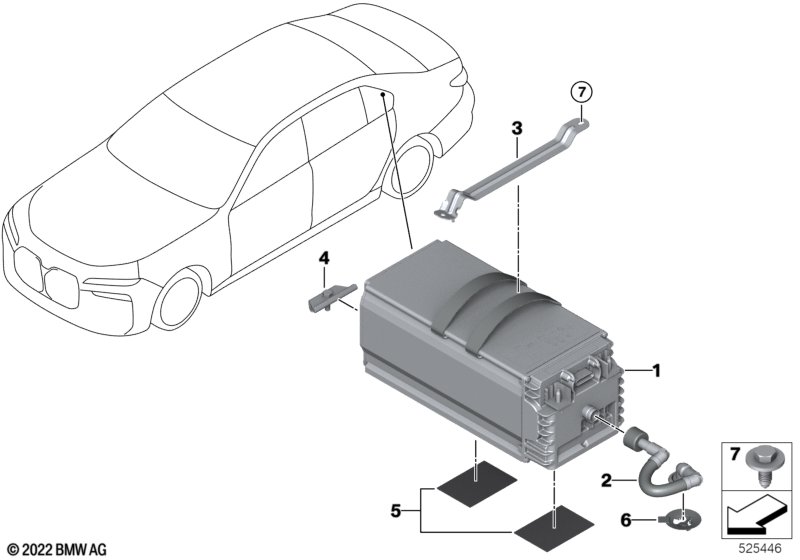

This 48-V battery technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 48-V battery | 2.0 | 1 | 61215A64DD1 | Shop at ECS Tuning | |||||
| 02 | Vent hose for battery | 1 | 61215A30BD9 | Shop at ECS Tuning | ||||||
| 03 | Battery, rollover bar | 1 | 61215A34222 | Shop at ECS Tuning | ||||||
| 04 | Battery clamp rail | 1 | 61216832664 | Shop at ECS Tuning | ||||||
| 05 | Insulation element | 100X40MM | 1 | 07148780715 | Shop at ECS Tuning | |||||
| 05 | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 06 | Retaining clip | 1 | 61215A19BB2 | Shop at ECS Tuning | ||||||
| 07 | Combination Allen bolt | M6X16 | 2 | 61219855662 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740d 48-V battery?
- This technical diagram illustrates the 48-V battery within the Vehicle electrical system group for the 7 Series G70 740d produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the 48-V battery (Part #61215A64DD1).
- Which models use the hardware listed in this 48-V battery?
- The hardware and components featured in the 48-V battery are specific to the 7 Series G70 740d produced during 2023. These technical specifications ensure that parts like the 48-V battery (61215A64DD1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 48-V battery assembly?
- Each item in the 48-V battery corresponds to the numbered list below the illustration. For the 7 Series G70 740d, you can identify the 48-V battery by locating its position on the schematic, which then links to the official BMW part number 61215A64DD1 for the Vehicle electrical system section.
