High-voltage battery vent unit for BMW 7 Series G70 M760eX (2025)

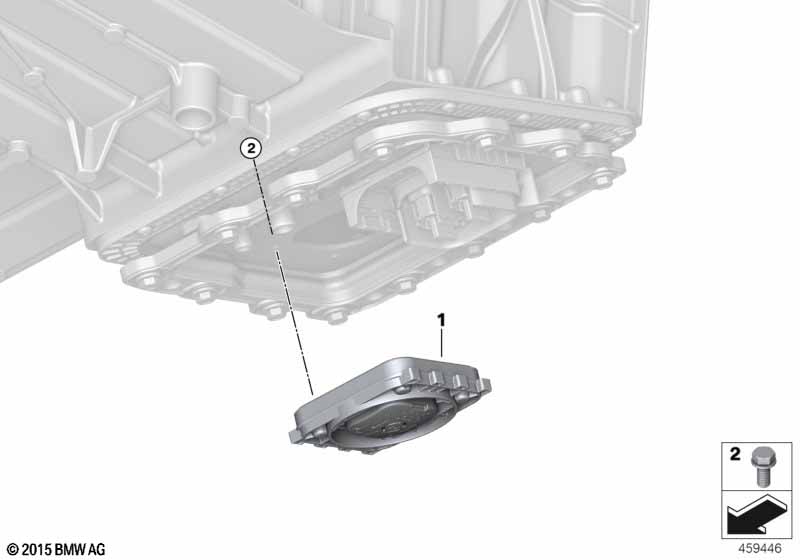

This High-voltage battery vent unit technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Venting unit | 2 | 61278859306 | NoS | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M5X10 | 8 | 07119906043 | $2.84 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX High-voltage battery vent unit?
- This technical diagram illustrates the High-voltage battery vent unit within the Vehicle electrical system group for the 7 Series G70 M760eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Venting unit (Part #61278859306).
- Which models use the hardware listed in this High-voltage battery vent unit?
- The hardware and components featured in the High-voltage battery vent unit are specific to the 7 Series G70 M760eX produced during 2025. These technical specifications ensure that parts like the Venting unit (61278859306) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-voltage battery vent unit assembly?
- Each item in the High-voltage battery vent unit corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the Venting unit by locating its position on the schematic, which then links to the official BMW part number 61278859306 for the Vehicle electrical system section.
