High-voltage battery, radiator for BMW 5 Series G61 Touring 530eX (2025)

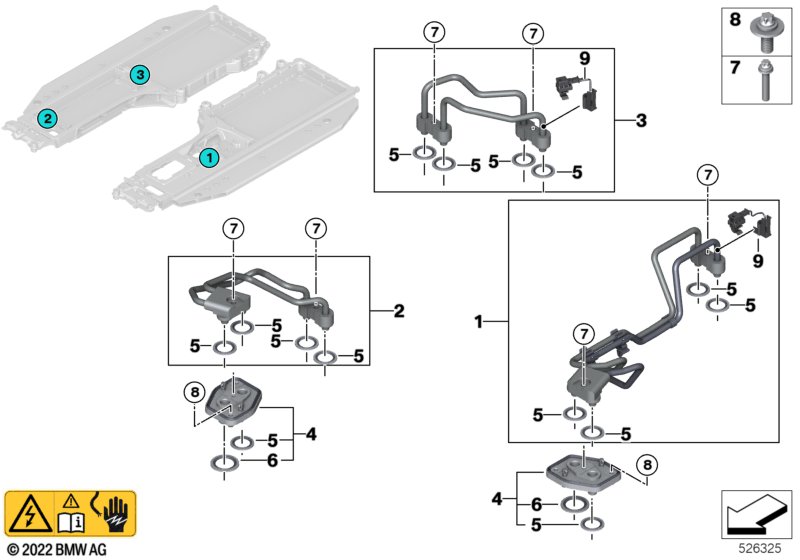

This High-voltage battery, radiator technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cooler line high-voltage battery left | 1 | 61278836638 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M6X30 | 2 | 07148860772 | Shop at ECS Tuning | |||||
| 02 | Cooler line, high-voltage battery | 1 | 61278836640 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M6X30 | 2 | 07148860772 | Shop at ECS Tuning | |||||
| 03 | Cooler line high-voltage battery right | 1 | 61278836639 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M6X30 | 2 | 07148860772 | Shop at ECS Tuning | |||||
| 04 | Connection flange | 2 | 61278835157 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Star-socket screw | M6X30 | 2 | 07148860772 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | D=11MM | 14 | 64539284018 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | D=15MM | 2 | 64539284850 | Shop at ECS Tuning | |||||
| 07 | Star-socket screw | M6X30 | 6 | 07148860772 | Shop at ECS Tuning | |||||
| 08 | Star-socket screw | BM6X16-U2-8.8 | 4 | 07119908753 | Shop at ECS Tuning | |||||
| 09 | Temperature sensor | 1 | 61278741778 | Shop at ECS Tuning | ||||||
