HV cable set for charge socket for BMW 7 Series G70 M760eX (2025)

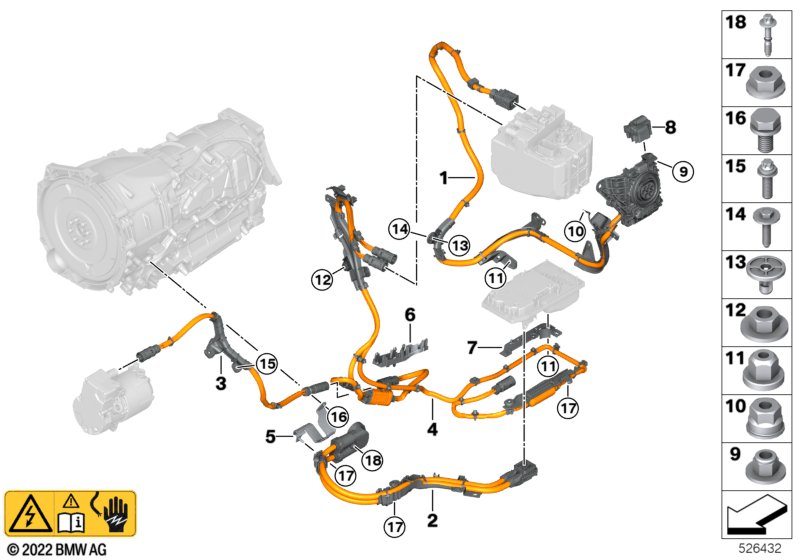

This HV cable set for charge socket technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Charge socket, export Submit a TSARA case (parts technology) before ordering and wait for a response! |
S8BKA=Yes |
|||||||||
| 01 | HV wiring harness charging cable AC | LL | 1 | 61295B32B77 | Shop at ECS Tuning | |||||
| For vehicles with Charge socket, export |
S8BKA=No |
|||||||||
| 01 | HV wiring harness charging cable AC | RL | 1 | 61295B3A400 | NoS | Shop at ECS Tuning | ||||
| 02 | High-voltage wiring harness for EME | 1 | 61295A63B51 | Shop at ECS Tuning | ||||||
| 03 | Adapter cable EKMV | 1 | 61295A63B27 | Shop at ECS Tuning | ||||||
| 04 | High-voltage cable EKMV | RL | 1 | 61295A63B46 | Shop at ECS Tuning | |||||
| 05 | Cable bracket | 1 | 12905A35928 | Shop at ECS Tuning | ||||||
| 06 | Cable bracket | 1 | 12905A398A8 | Shop at ECS Tuning | ||||||
| 07 | Cable routing | 1 | 61295A50C07 | Shop at ECS Tuning | ||||||
| For vehicles with Charge socket, export |
S8BKA=No |
|||||||||
| 08 | Actuator | ECE | 1 | 61125A3EBF5 | Shop at ECS Tuning | |||||
| 09 | Hex nut | 3 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 10 | Nut | 1 | 41009630135 | Shop at ECS Tuning | ||||||
| 11 | Plastic nut for coarse threaded pin | M6 | 5 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 12 | Hex nut with plate | M6 | 3 | 07147311066 | Shop at ECS Tuning | |||||
| 13 | Expanding nut | L= 19.9MM | 1 | 07147306224 | Shop at ECS Tuning | |||||
| 14 | Hexagon screw for plastic | 1 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 15 | Torx bolt | M8X25 8.8 ZNS3 | 2 | 07119908535 | Shop at ECS Tuning | |||||
| 16 | Combination Allen bolt | M6X16 | 2 | 61219855662 | Shop at ECS Tuning | |||||
| 17 | Hex nut with plate | M6-8-ZNNIV SI | 5 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 18 | ASA-Bolt | M8X46 | 1 | 61125B511C1 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 M760eX HV cable set for charge socket?
- This technical diagram illustrates the HV cable set for charge socket within the Vehicle electrical system group for the 7 Series G70 M760eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the HV wiring harness charging cable AC (Part #61295B32B77).
- Which models use the hardware listed in this HV cable set for charge socket?
- The hardware and components featured in the HV cable set for charge socket are specific to the 7 Series G70 M760eX produced during 2025. These technical specifications ensure that parts like the HV wiring harness charging cable AC (61295B32B77) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the HV cable set for charge socket assembly?
- Each item in the HV cable set for charge socket corresponds to the numbered list below the illustration. For the 7 Series G70 M760eX, you can identify the HV wiring harness charging cable AC by locating its position on the schematic, which then links to the official BMW part number 61295B32B77 for the Vehicle electrical system section.
