High-voltage battery module for BMW 5 Series G60 Sedan 530e (2025)

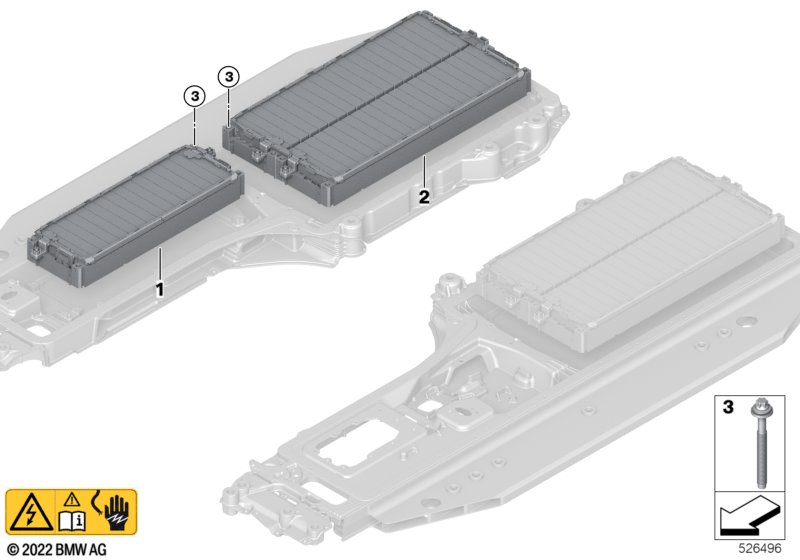

This High-voltage battery module technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cell module, high-voltage battery | 1 | 61278886695 | Shop at ECS Tuning | ||||||
| 02 | Double module high-voltage battery | 2 | 61278886696 | Shop at ECS Tuning | ||||||
| 03 | External Torx socket | M8X84 | 12 | 07148837095 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 530e High-voltage battery module?
- This technical diagram illustrates the High-voltage battery module within the Vehicle electrical system group for the 5 Series G60 Sedan 530e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cell module, high-voltage battery (Part #61278886695).
- Which models use the hardware listed in this High-voltage battery module?
- The hardware and components featured in the High-voltage battery module are specific to the 5 Series G60 Sedan 530e produced during 2025. These technical specifications ensure that parts like the Cell module, high-voltage battery (61278886695) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-voltage battery module assembly?
- Each item in the High-voltage battery module corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 530e, you can identify the Cell module, high-voltage battery by locating its position on the schematic, which then links to the official BMW part number 61278886695 for the Vehicle electrical system section.
