Power dist./ B+ distributor rear for BMW 5 Series G61 Touring 520d (2023)

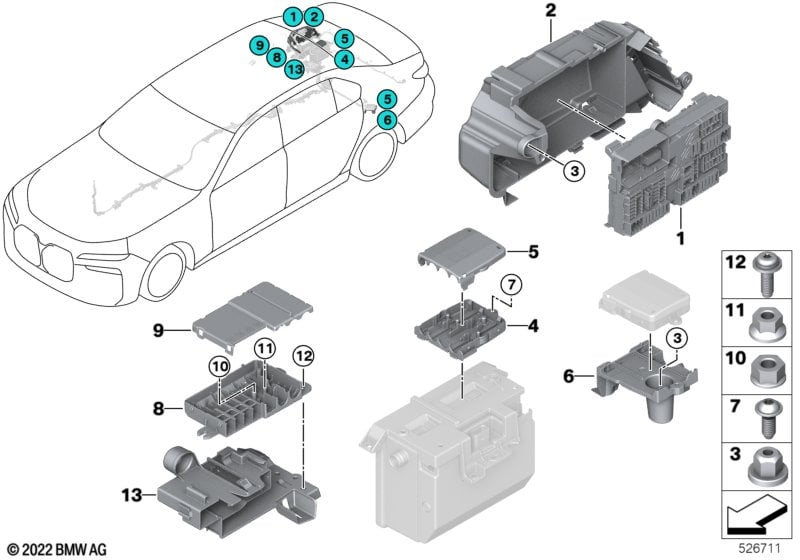

This Power dist./ B+ distributor rear technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power distribution box | MID | 1 | 61145A2D4A4 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 01 | Power distribution box | HIGH | 1 | 61145A2D4A3 | Shop at ECS Tuning | |||||
| 02 | Holder power distribution box | 1 | 61135A1D5D9 | Shop at ECS Tuning | ||||||
| 03 | Plastic nut for coarse threaded pin | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Power distribution box B+ | 48V | 1 | 61145A097C9 | Shop at ECS Tuning | |||||
| 05 | Lid power distribution box B+ | 1 | 61145A097D0 | Shop at ECS Tuning | ||||||
| 07 | Screw | TS 5X12 | 1 | 07129908078 | Shop at ECS Tuning | |||||
| 08 | Power distribution box B+ | 1 | 61145A097D4 | Shop at ECS Tuning | ||||||
| 09 | Lid power distribution box B+ | 1 | 61145A097D8 | Shop at ECS Tuning | ||||||
| 10 | Flange nut | M8 | 2 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Nut | M6 | 1 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Screw | VS-TS6X20-U2 | 2 | 07129909270 | Shop at ECS Tuning | |||||
| 13 | Equipment holder | 1 | 61135A1D5E0 | Shop at ECS Tuning | ||||||
