Rep.cable f.main wiring harness - Airbag for BMW 7 Series G70 740iX (2025)

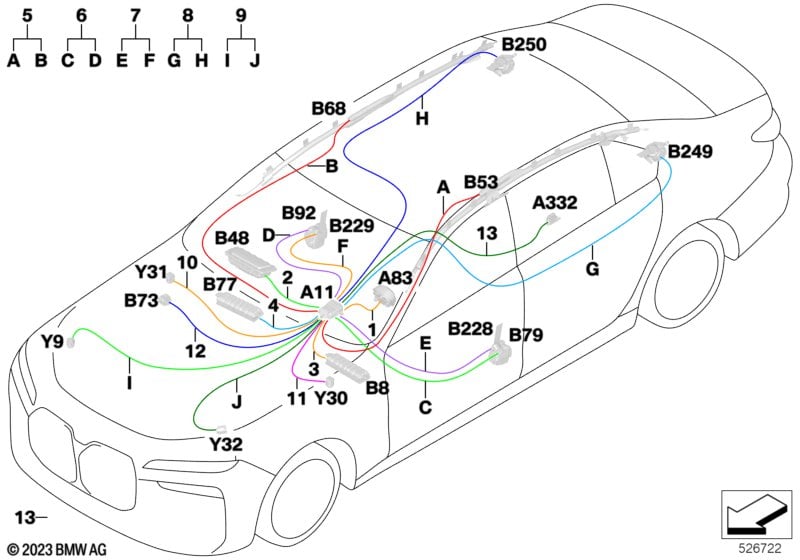

This Rep.cable f.main wiring harness - Airbag technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair cable, driver's airbag | 1 | 61125B46809 | NoS | Shop at ECS Tuning | |||||
| suitable for front passenger airbag | ||||||||||
| 02 | Repair cable airbag | 1 | 61125B46808 | NoS | Shop at ECS Tuning | |||||
| 03 | Rep. wire, knee guard, driver | 1 | 61125B46811 | Shop at ECS Tuning | ||||||
| 04 | Rep. wire, knee guard, passenger | 1 | 61125B46810 | Shop at ECS Tuning | ||||||
| suitable for Head airbag |
||||||||||
| 05 | Repair cable airbag | 1 | 61115A6C139 | NoS | Shop at ECS Tuning | |||||
| From A11*2B ACSM to B79*1B adaptive seat belt force limiter, driver |
||||||||||
| 06 | Repair cable airbag belt force limiter | 1 | 61115A57CF9 | Shop at ECS Tuning | ||||||
| From A11*2B ACSM to B229*1B front passenger reel tensioner |
||||||||||
| 07 | Repair cable, airbag | 1 | 61115A57CC9 | Shop at ECS Tuning | ||||||
| suitable for 2nd seat row |
||||||||||
| 08 | Repair cable, airbag, auto. tensioner | 1 | 61115A6C128 | Shop at ECS Tuning | ||||||
| 09 | Reparaturkabel Airbag/Fussgängerschutz | 1 | 61115A6C770 | NoS | Shop at ECS Tuning | |||||
| 10 | Reparaturkabel Airbag/Fussgängerschutz | 1 | 61115A6C144 | NoS | Shop at ECS Tuning | |||||
| 11 | Reparaturkabel Airbag/Fussgängerschutz | 1 | 61115A6C177 | NoS | Shop at ECS Tuning | |||||
| Suitable for safety battery terminal | ||||||||||
| 12 | Repair cable airbag | 1 | 61115A6C761 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
