Wiring harness repair cable antenna/coax for BMW 3 Series G20 Sedan LCI M340iX

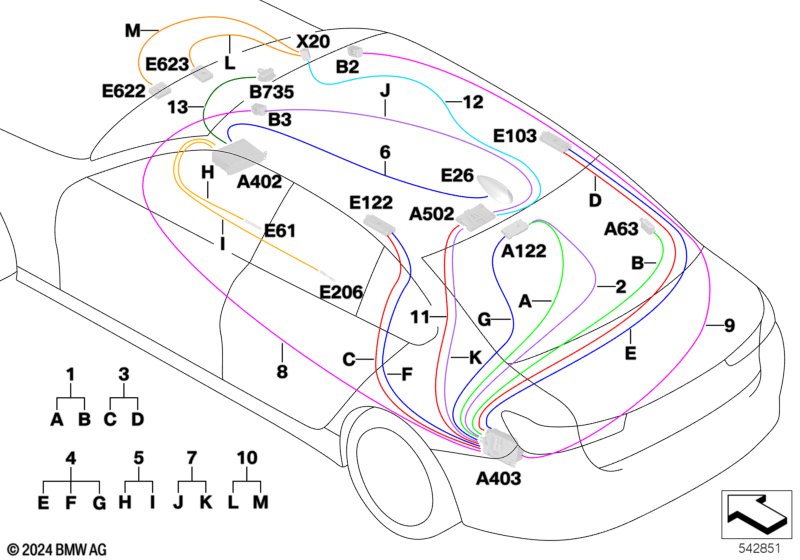

This Wiring harness repair cable antenna/coax technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340iX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan and TV function |
L807A=Yes S601A=Yes |
|||||||||
| 01 | Repair module antenna wires RAM | L= 2687MM | 1 | 61115A4CEC4 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and DAB tuner |
L802A=Yes S654A=Yes |
|||||||||
| 01 | Rep.module antennas DAB | L= 2672MM | 1 | 61115A4CEB4 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and DAB tuner |
L802A=Yes S654A=No |
|||||||||
| 01 | Rep.module antennas DAB | L= 2672MM | 1 | 61115A4CEB4 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and DAB tuner |
L802A=No S654A=Yes |
|||||||||
| 01 | Rep.module antennas DAB | L= 2672MM | 1 | 61115A4CEB4 | Shop at ECS Tuning | |||||
| 02 | Rep.module aerial lines FM1/ FM2 | L= 2396MM | 1 | 61115A4CEB5 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 03 | Rep.module antennas DAB | L= 3812MM | 1 | 61119436489 | Shop at ECS Tuning | |||||
| 04 | Repair module antenna wires RAM | L= 3827MM | 1 | 61115A4CEC3 | Shop at ECS Tuning | |||||
| 05 | Antenna wire Bluetooth antenna | L= 1199MM | 1 | 61115A4CEB0 | Shop at ECS Tuning | |||||
| 06 | Antenna cable GPS | L= 5365MM | 1 | 61119436481 | Shop at ECS Tuning | |||||
| 07 | Repair module sheathed cable with shield | L= 6474MM | 1 | 61115A4CF01 | Shop at ECS Tuning | |||||
| 08 | Repair cable microphone | L= 6244MM | 1 | 61115A4CEF9 | Shop at ECS Tuning | |||||
| 09 | Repair cable microphone | L= 6244MM | 1 | 61115A4CEF6 | Shop at ECS Tuning | |||||
| 10 | Repair mod. antenna wire Dual Sim Active | 1 | 07/2022 | 61115A45A03 | Shop at ECS Tuning | |||||
| 10 | Repair mod. antenna wire Dual Sim Active | L= 537MM | 1 | 03/2024 | 61115A4C048 | Shop at ECS Tuning | ||||
| 10 | Repair mod. antenna wire Dual Sim Active | L= 537MM | 1 | 61115A86A99 | NoS | Shop at ECS Tuning | ||||
| 11 | Antenna cable SDARS | L= 2115MM | 1 | 61115A84886 | NoS | Shop at ECS Tuning | ||||
| 12 | Antenna line, telephone | L= 4540MM | 1 | 07/2024 | 61115A84887 | NoS | Shop at ECS Tuning | |||
| 12 | Repair mod. antenna wire Dual SIM | L= 4790 MM | 1 | 61115A71960 | Shop at ECS Tuning | |||||
| 13 | Antenna cable | L= 4401MM | 1 | 61115A86BC1 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
