Battery cable/earth cable for BMW 7 Series G70 740d (2024)

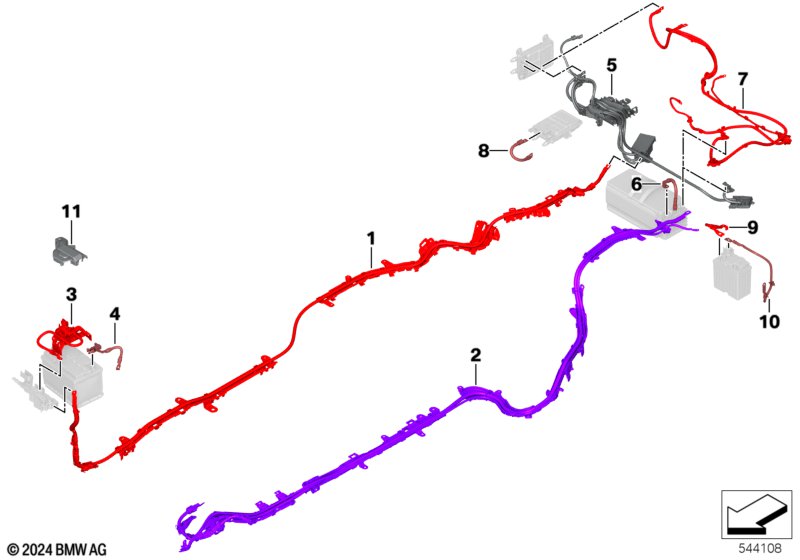

This Battery cable/earth cable technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable pos.terminal underfloor | 1 | 61125A3ED58 | Shop at ECS Tuning | ||||||
| 02 | Battery cable pos.terminal underfloor | 48V | 1 | 05/2025 | 61125A3ED71 | Shop at ECS Tuning | ||||
| 02 | Battery cable pos.terminal underfloor | 48V | 1 | 61125B726F1 | Shop at ECS Tuning | |||||
| 03 | Battery cable pos.term.power distr.box | SBK | 1 | 61125B32F52 | Shop at ECS Tuning | |||||
| 04 | Battery cable negative IBS | 1 | 07/2024 | 61215A6A672 | Shop at ECS Tuning | |||||
| 04 | Battery cable, negative, IBS | 1 | 61215B3E987 | Shop at ECS Tuning | ||||||
| 05 | Positive battery distributor with lines | 12V/48V | 1 | 61125A6A140 | Shop at ECS Tuning | |||||
| 06 | Battery cable negative terminal | 48V | 1 | 05/2025 | 61125A6AA81 | Shop at ECS Tuning | ||||
| 06 | Battery cable negative terminal | 48V | 1 | 61125B720D3 | Shop at ECS Tuning | |||||
| 11 | Cover, pos term, power dist box | 1 | 61125A33854 | Shop at ECS Tuning |
