Repair cable, Ethernet for BMW 3 Series G20 Sedan 330eX (2020)

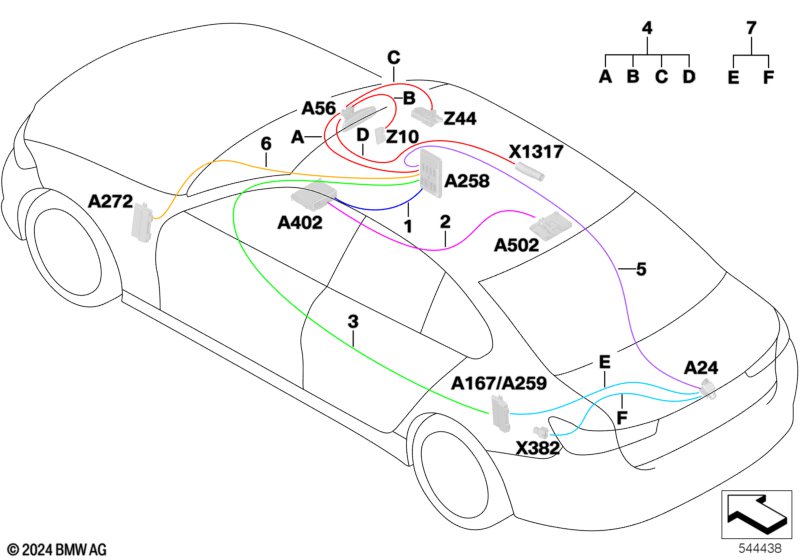

This Repair cable, Ethernet technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable for Ethernet | L= 2633MM | 1 | 61119863691 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=Yes S6AFA=Yes S6PAA=Yes |
|||||||||
| 02 | Line for Ethernet | L= 5210MM | 1 | 61115A4CEE1 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=Yes S6AFA=No S6PAA=Yes |
|||||||||
| 02 | Line for Ethernet | L= 5210MM | 1 | 61115A4CEE1 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=No S6AFA=Yes S6PAA=Yes |
|||||||||
| 02 | Line for Ethernet | L= 5210MM | 1 | 61115A4CEE1 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=Yes S6AFA=Yes S6PAA=No |
|||||||||
| 02 | Line for Ethernet | L= 5210MM | 1 | 61115A4CED9 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=Yes S6AFA=No S6PAA=No |
|||||||||
| 02 | Line for Ethernet | L= 5210MM | 1 | 61115A4CED9 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM |
S6AEA=No S6AFA=Yes S6PAA=No |
|||||||||
| 02 | Line for Ethernet | L= 5210MM | 1 | 61115A4CED9 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 03 | Line for Ethernet | L= 5396MM | 1 | 61115A4D332 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Active Guard |
S5ASA=Yes S5AUA=Yes S5AVA=Yes |
|||||||||
| 04 | Repair module Ethernet | L= 3677MM | 1 | 61115A4D604 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Active Guard |
S5ASA=Yes S5AUA=Yes S5AVA=No |
|||||||||
| 04 | Repair module Ethernet | L= 3677MM | 1 | 61115A4D604 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Active Guard |
S5ASA=Yes S5AUA=No S5AVA=Yes |
|||||||||
| 04 | Repair module Ethernet | L= 3677MM | 1 | 61115A4D604 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Active Guard |
S5ASA=Yes S5AUA=No S5AVA=No |
|||||||||
| 04 | Repair module Ethernet | L= 3677MM | 1 | 61115A4D604 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Active Guard |
S5ASA=No S5AUA=Yes S5AVA=Yes |
|||||||||
| 04 | Repair module Ethernet | L= 3677MM | 1 | 61115A4D604 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Active Guard |
S5ASA=No S5AUA=Yes S5AVA=No |
|||||||||
| 04 | Repair module Ethernet | L= 3677MM | 1 | 61115A4D604 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving assistant professional and Active Guard |
S5ASA=No S5AUA=No S5AVA=Yes |
|||||||||
| 04 | Repair module Ethernet | L= 3677MM | 1 | 61115A4D604 | Shop at ECS Tuning | |||||
| 05 | Line for Ethernet | L= 5465MM | 1 | 61115A60C25 | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 06 | Cable for Ethernet | L= 2616MM | 1 | 61115A86689 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330eX Repair cable, Ethernet?
- This technical diagram illustrates the Repair cable, Ethernet within the Vehicle electrical system group for the 3 Series G20 Sedan 330eX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Cable for Ethernet (Part #61119863691).
- Which models use the hardware listed in this Repair cable, Ethernet?
- The hardware and components featured in the Repair cable, Ethernet are specific to the 3 Series G20 Sedan 330eX produced during 2020. These technical specifications ensure that parts like the Cable for Ethernet (61119863691) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Repair cable, Ethernet assembly?
- Each item in the Repair cable, Ethernet corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330eX, you can identify the Cable for Ethernet by locating its position on the schematic, which then links to the official BMW part number 61119863691 for the Vehicle electrical system section.
