Supercap 48 Volt for BMW XM G09 XM (2025)

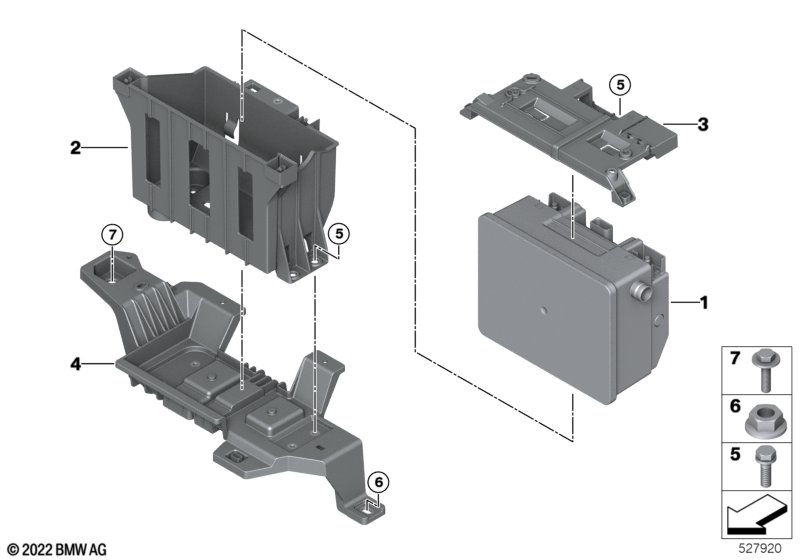

This Supercap 48 Volt technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 48-V super cap | 1 | 61215B371B7 | NoS | Shop at ECS Tuning | |||||
| 02 | Holder Supercap | 1 | 61219433960 | Shop at ECS Tuning | ||||||
| 03 | Lid holder Supercap | 1 | 61219433961 | Shop at ECS Tuning | ||||||
| 04 | Carrier plate Supercap 48 Volt | 1 | 61219824061 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X20 | 6 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M10X25- 8.8 | 1 | 07119905563 | $1.16 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Supercap 48 Volt?
- This technical diagram illustrates the Supercap 48 Volt within the Vehicle electrical system group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the 48-V super cap (Part #61215B371B7).
- Which models use the hardware listed in this Supercap 48 Volt?
- The hardware and components featured in the Supercap 48 Volt are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the 48-V super cap (61215B371B7) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Supercap 48 Volt assembly?
- Each item in the Supercap 48 Volt corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the 48-V super cap by locating its position on the schematic, which then links to the official BMW part number 61215B371B7 for the Vehicle electrical system section.
