Cable guide for BMW 7 Series G70 740d (2023)

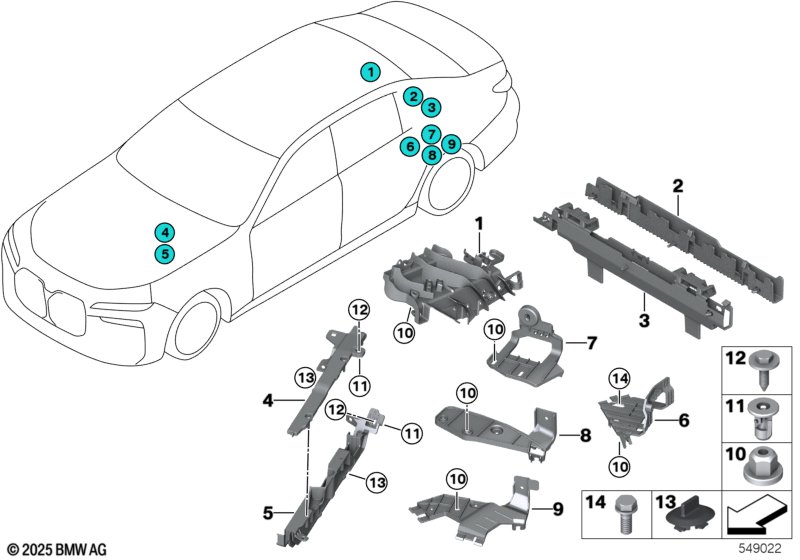

This Cable guide technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cable duct, luggage compartment well | 1 | 61135A1D582 | Shop at ECS Tuning | ||||||
| 04 | Sealing frame upper section right | LL ICE/BEV | 1 | 61135A1D5F1 | Shop at ECS Tuning | |||||
| 05 | Sealing frame lower part right | LL ICE/BEV | 1 | 61135A1D5F0 | Shop at ECS Tuning | |||||
| 06 | Holder, wheel well, right | 1 | 61135A1D5D6 | Shop at ECS Tuning | ||||||
| 06 | Holder, wheel well, left | 1 | 61135A1D5D5 | Shop at ECS Tuning | ||||||
| 10 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | L=18.4, DMAX=18 | 10 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | TS5X20 SW8 D=16 | 10 | 07147148437 | $0.44 | Shop at ECS Tuning | ||||
| 13 | Cover lid | 3 | 61139377505 | Shop at ECS Tuning | ||||||
| 14 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning |
