Single wiper parts for BMW 5 Series G90 M5 M5 (2025)

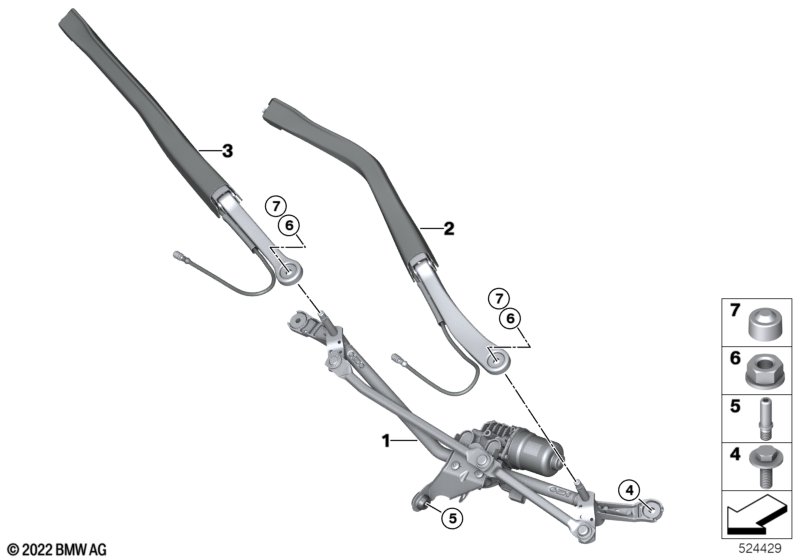

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Linkage, wiper system with motor | LL | 1 | 61615B33F59 | Shop at ECS Tuning | |||||
| 02 | Wiper arm driver's side | LL | 1 | 61615A01A88 | Shop at ECS Tuning | |||||
| 03 | Wiper arm, front passenger side | LL | 1 | 61615A01A90 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X25 | 2 | 07119905398 | Shop at ECS Tuning | |||||
| 05 | Pin | 1 | 17137357293 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | 2 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 07 | Covering cap | 2 | 52108119867 | $0.21 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G90 M5 M5 Single wiper parts?
- This technical diagram illustrates the Single wiper parts within the Vehicle electrical system group for the 5 Series G90 M5 M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Linkage, wiper system with motor (Part #61615B33F59).
- Which models use the hardware listed in this Single wiper parts?
- The hardware and components featured in the Single wiper parts are specific to the 5 Series G90 M5 M5 produced during 2025. These technical specifications ensure that parts like the Linkage, wiper system with motor (61615B33F59) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single wiper parts assembly?
- Each item in the Single wiper parts corresponds to the numbered list below the illustration. For the 5 Series G90 M5 M5, you can identify the Linkage, wiper system with motor by locating its position on the schematic, which then links to the official BMW part number 61615B33F59 for the Vehicle electrical system section.
