Repair cable main wiring harn.shielded for BMW 5 Series G61 Touring 530eX (2025)

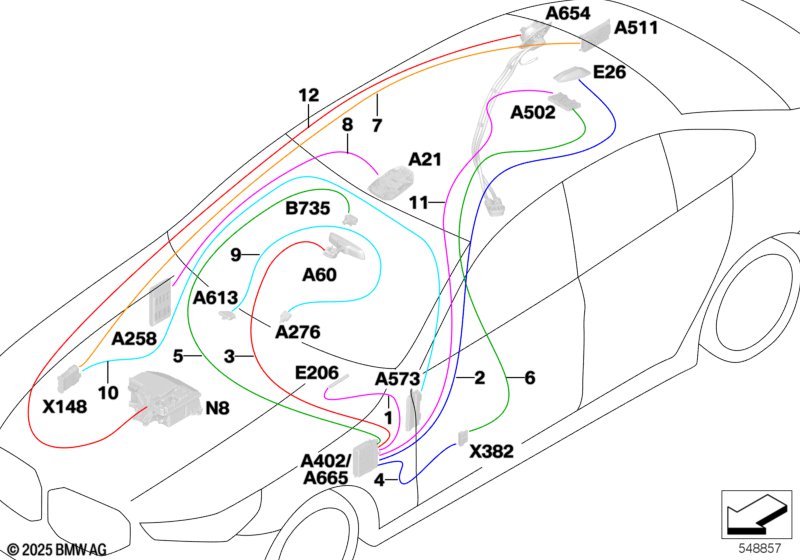

This Repair cable main wiring harn.shielded technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep.module antenna wire Wi-Fi/Bluetooth® | L= 2206MM | 1 | 61115A57868 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=No |
|||||||||
| 02 | Antenna cable | L= 4733MM | 1 | 61115B3ACC1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | HSD line interior rear view mirror | L= 3241MM | 1 | 61115A8D254 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=Yes S6AEA=Yes S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=Yes S6AEA=Yes S6AFA=No |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=Yes S6AEA=No S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=Yes S6AEA=No S6AFA=No |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=No S6AEA=Yes S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=No S6AEA=Yes S6AFA=No |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=No S6AEA=No S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=Yes S5DXA=No S6AEA=No S6AFA=No |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=No S5DXA=Yes S6AEA=Yes S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=No S5DXA=Yes S6AEA=Yes S6AFA=No |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=No S5DXA=Yes S6AEA=No S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=No S5DXA=Yes S6AEA=No S6AFA=No |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=No S5DXA=No S6AEA=Yes S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=No S5DXA=No S6AEA=Yes S6AFA=No |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and BMW Personal pilot and Teleservices and Statutory emergency request |
S5AXA=No S5DXA=No S6AEA=No S6AFA=Yes |
|||||||||
| 04 | Repair module for Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| 05 | Coaxial line | 1 | 61115A57E75 | Shop at ECS Tuning | ||||||
| For vehicles with Personal eSIM |
S6PAA=No |
|||||||||
| 06 | Repair module for Ethernet | L= 4669MM | 1 | 61115B3ACC8 | NoS | Shop at ECS Tuning | ||||
| 06 | Repair module for Ethernet | L= 4668MM | 1 | 61115B3ACC9 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 07 | Repair module for Ethernet | L= 6237MM | 1 | 61115A8CF62 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior camera and BMW Natural Interaction |
S4NRA=Yes S6U7A=Yes |
|||||||||
| 08 | Repair module for Ethernet | L= 3885MM | 1 | 61115A8CF29 | Shop at ECS Tuning | |||||
| For vehicles with Interior camera and BMW Natural Interaction |
S4NRA=Yes S6U7A=No |
|||||||||
| 08 | Repair module for Ethernet | L= 3885MM | 1 | 61115A8CF29 | Shop at ECS Tuning | |||||
| For vehicles with Interior camera and BMW Natural Interaction |
S4NRA=No S6U7A=Yes |
|||||||||
| 08 | Repair module for Ethernet | L= 3885MM | 1 | 61115A8CF29 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
