Repair cable main wiring harn.shielded for BMW 5 Series G60 Sedan 530e (2025)

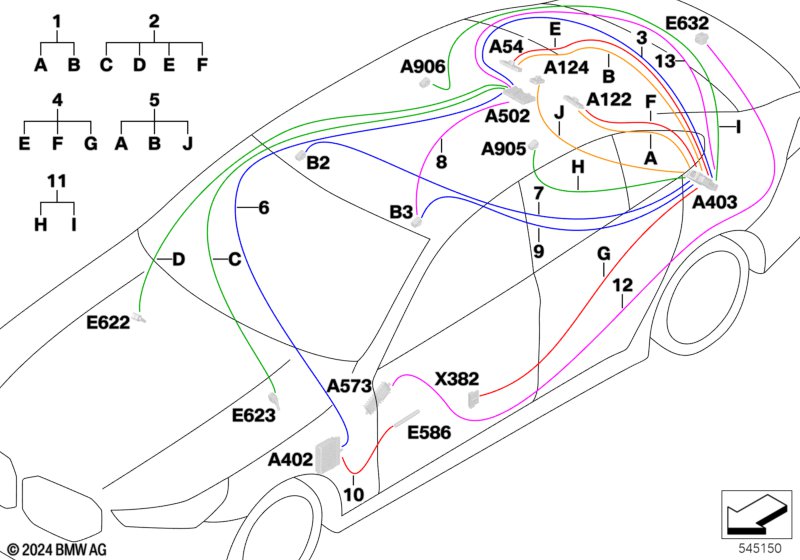

This Repair cable main wiring harn.shielded technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep.module antennas DAB | L= 2991MM | 1 | 61115A8CA35 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Personal eSIM |
S6PAA=Yes |
|||||||||
| 02 | Repair mod. antenna wire Dual Sim Active | L= 3195MM | 1 | 61115A8CA30 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 03 | Repair cable sheathed cable with shield | L= 2634MM | 1 | 61115A8CA67 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
|||||||||
| 03 | Repair cable sheathed cable with shield | L= 2634MM | 1 | 61115A8CA67 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
|||||||||
| 03 | Repair cable sheathed cable with shield | L= 2634MM | 1 | 61115A8CA67 | Shop at ECS Tuning | |||||
| 04 | Repair module antenna wires | 1 | 61115A8CA19 | NoS | Shop at ECS Tuning | |||||
| For vehicles with TV function |
S601A=Yes |
|||||||||
| 05 | Repair module antenna wires | L= 3037MM | 1 | 61115A8CA36 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Personal eSIM |
S6PAA=Yes |
|||||||||
| 06 | Repair module for Ethernet | L= 4158MM | 1 | 61115A8CA39 | NoS | Shop at ECS Tuning | ||||
| 07 | Repair cable sheathed cable with shield | L= 3787MM | 1 | 61115B3ACE6 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 08 | Repair cable sheathed cable with shield | L= 3228MM | 1 | 61115A8CA56 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
|||||||||
| 08 | Repair cable sheathed cable with shield | L= 3228MM | 1 | 61115A8CA56 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
|||||||||
| 08 | Repair cable sheathed cable with shield | L= 3228MM | 1 | 61115A8CA56 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=No |
|||||||||
| 09 | Repair cable sheathed cable with shield | L= 3584MM | 1 | 61115A8CA57 | Shop at ECS Tuning | |||||
| 10 | Repair cable sheathed cable with shield | L= 483MM | 1 | 61115A8CA32 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and BMW Live dashboard Professional |
S402A=Yes S6U3A=Yes |
|||||||||
| 11 | Repair cable sheathed cable with shield | L= 3611MM | 1 | 61115A8CA51 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and BMW Live dashboard Professional |
S402A=Yes S6U3A=No |
|||||||||
| 11 | Repair cable sheathed cable with shield | L= 3611MM | 1 | 61115A8CA51 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and BMW Live dashboard Professional |
S402A=No S6U3A=Yes |
|||||||||
| 11 | Repair cable sheathed cable with shield | L= 3611MM | 1 | 61115A8CA51 | Shop at ECS Tuning | |||||
| 12 | Repair cable sheathed cable with shield | L= 4606MM | 1 | 61115A9A083 | Shop at ECS Tuning | |||||
| 13 | Antenna wire SDARS | L= 2659MM | 1 | 61115A8CA62 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
