High-voltage battery control units for BMW 3 Series G20 Sedan LCI 330eX (2025)

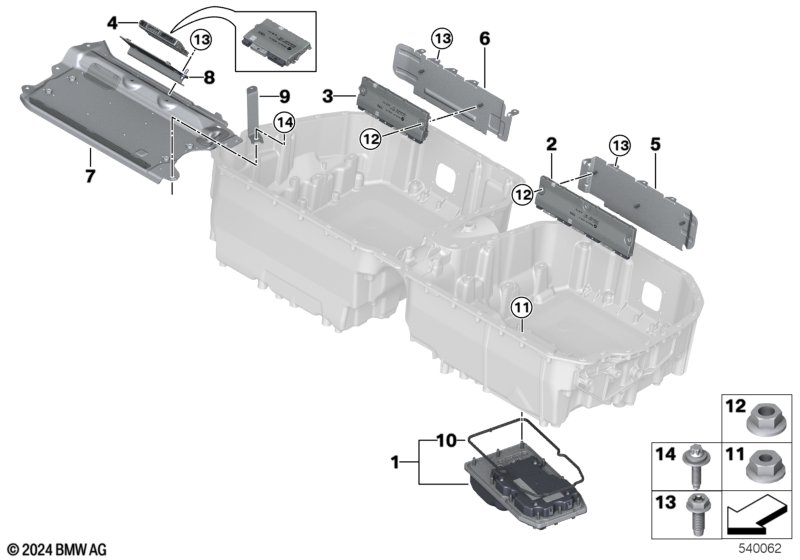

This High-voltage battery control units technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electronic memory management | 1 | 05/2025 | 61278877437 | Shop at ECS Tuning | |||||
| 01 | Speicher Management Elektronik | 1 | 61278886984 | Shop at ECS Tuning | ||||||
| 02 | Cell supervision circuit 1 | 1 | 61279797819 | Shop at ECS Tuning | ||||||
| 03 | Cell supervision circuit 3 | 1 | 61279797818 | Shop at ECS Tuning | ||||||
| 04 | Cell monitoring circuit | 1 | 61279797817 | Shop at ECS Tuning | ||||||
| 05 | Holder, CSC, left | 1 | 61278846733 | NoS | Shop at ECS Tuning | |||||
| 06 | Holder, CSC, right | 1 | 61278846734 | NoS | Shop at ECS Tuning | |||||
| 07 | Module bridge | 1 | 61278848971 | Shop at ECS Tuning | ||||||
| 08 | Holder, CSC, high-voltage battery | 1 | 61278846727 | NoS | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 61278859763 | NoS | Shop at ECS Tuning | |||||
| 10 | Seal | 1 | 61278856036 | Shop at ECS Tuning | ||||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 10 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M5 | 5 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 13 | Screw | M6X18 | 9 | 61278677639 | Shop at ECS Tuning | |||||
| 14 | Screw | 5 | 61279454855 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
