High-voltage battery module for BMW 3 Series G20 Sedan LCI 330e (2025)

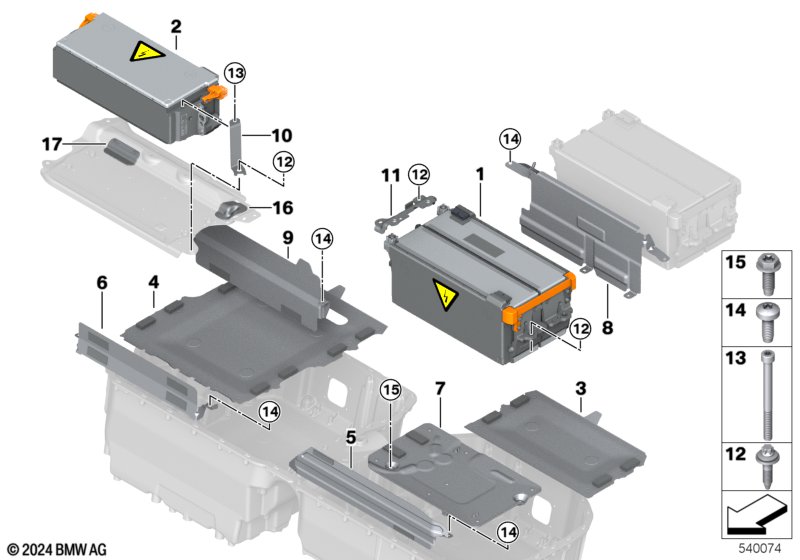

This High-voltage battery module technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Double cell module for high-volt.battery | 4 | 61278847829 | Shop at ECS Tuning | ||||||
| 02 | Cell module, high-voltage battery | 1 | 61278847830 | Shop at ECS Tuning | ||||||
| 03 | Mica panel | 1 | 61278867593 | NoS | Shop at ECS Tuning | |||||
| 04 | Mica panel | 1 | 61278867592 | NoS | Shop at ECS Tuning | |||||
| 05 | Cell module partition plate left | 1 | 61278877348 | Shop at ECS Tuning | ||||||
| 06 | Cell module partition plate right | 1 | 61278846726 | Shop at ECS Tuning | ||||||
| 07 | Drip protection | 1 | 61278870366 | NoS | Shop at ECS Tuning | |||||
| 08 | Zellmodul-Trennblech mitte links | 1 | 61278877499 | Shop at ECS Tuning | ||||||
| 09 | Cell module partition plate center right | 1 | 61278879242 | Shop at ECS Tuning | ||||||
| 10 | Holder | 1 | 61278859763 | NoS | Shop at ECS Tuning | |||||
| 11 | Holder dual module | 1 | 61278846742 | NoS | Shop at ECS Tuning | |||||
| 12 | Screw | 23 | 61279454855 | Shop at ECS Tuning | ||||||
| 13 | ISA screw | M6X100 | 4 | 07129904839 | $5.92 | Shop at ECS Tuning | ||||
| 14 | Torx screw | M6X16-10.9 | 10 | 61277629345 | Shop at ECS Tuning | |||||
| 15 | Screw | M6X18 | 2 | 61278677639 | Shop at ECS Tuning | |||||
| 16 | Plug | 1 | 61278862938 | Shop at ECS Tuning | ||||||
| 17 | Plug | 1 | 61278862939 | Shop at ECS Tuning |
