High-voltage battery, radiator for BMW 3 Series G20 Sedan LCI 330e (2025)

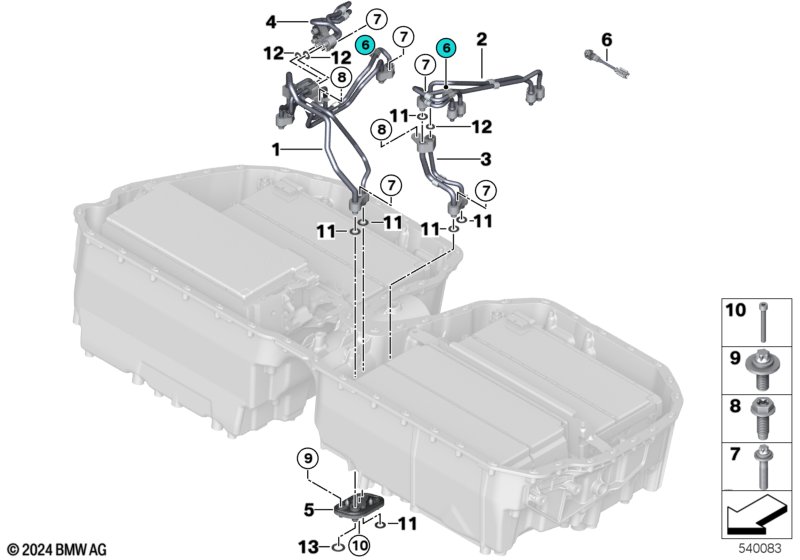

This High-voltage battery, radiator technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cooler line, high-voltage battery | 1 | 61278847592 | NoS | Shop at ECS Tuning | |||||
| 02 | Cooler line, high-voltage battery | 1 | 61278847593 | NoS | Shop at ECS Tuning | |||||
| 03 | Cooler line, high-voltage battery | 1 | 61278847591 | NoS | Shop at ECS Tuning | |||||
| 04 | Cooler line, high-voltage battery | 1 | 61278867325 | NoS | Shop at ECS Tuning | |||||
| 05 | Radiator connecting flange | 2 | 61278847590 | Shop at ECS Tuning | ||||||
| 06 | Temperature sensor | 1 | 61278673022 | Shop at ECS Tuning | ||||||
| 07 | Star-socket screw | M6X30 | 9 | 07148860772 | Shop at ECS Tuning | |||||
| 08 | Screw | M6X18 | 2 | 61278677639 | Shop at ECS Tuning | |||||
| 09 | Star-socket screw | BM6X16-U2-8.8 | 4 | 07119908753 | Shop at ECS Tuning | |||||
| 10 | Screw | 4 | 64509909280 | Shop at ECS Tuning | ||||||
| 11 | Gasket ring | D=11MM | X | 64539284018 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | D=8MM | X | 64539284020 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | D=15MM | X | 64539284850 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
