Wiring harness repair cable antenna/coax for BMW 4 Series G23 Convertible LCI M440iX (2025)

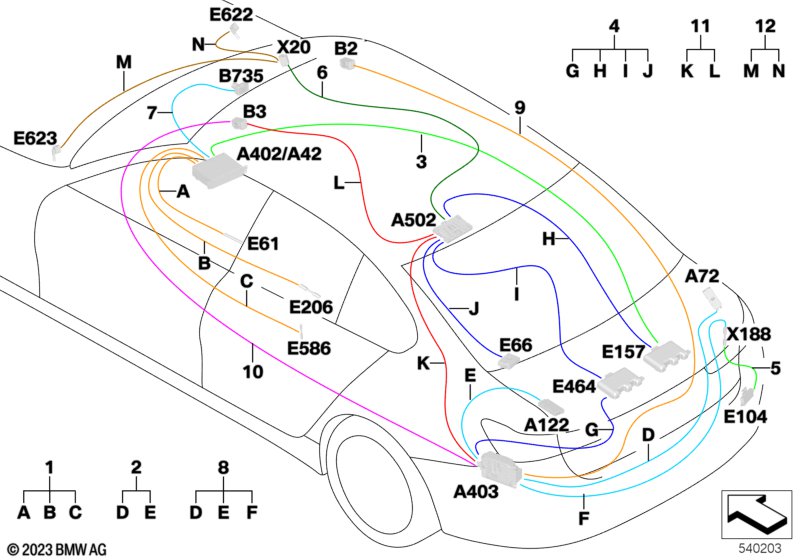

This Wiring harness repair cable antenna/coax technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep.module antenna wire Wi-Fi/Bluetooth® | L= 1158 MM | 1 | 61115A71963 | Shop at ECS Tuning | |||||
| 02 | Rep.module aerial lines FM1/ FM2 | 1 | 61115A23087 | Shop at ECS Tuning | ||||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 02 | Rep.module antennas DAB | 1 | 61115A23086 | Shop at ECS Tuning | ||||||
| 03 | Antenna cable GPS | L=5966MM | 1 | 61115A23088 | Shop at ECS Tuning | |||||
| For vehicles with Satellite tuner and Preparation BMW satellite radio |
S655A=Yes S693A=Yes |
|||||||||
| 04 | Repair module antenna wires SDARS | L= 3115MM | 1 | 61115A86BB7 | Shop at ECS Tuning | |||||
| For vehicles with Satellite tuner and Preparation BMW satellite radio |
S655A=Yes S693A=No |
|||||||||
| 04 | Repair module antenna wires SDARS | L= 3115MM | 1 | 61115A86BB7 | Shop at ECS Tuning | |||||
| For vehicles with Satellite tuner and Preparation BMW satellite radio |
S655A=No S693A=Yes |
|||||||||
| 04 | Repair module antenna wires SDARS | L= 3115MM | 1 | 61115A86BB7 | NoS | Shop at ECS Tuning | ||||
| For vehicles with TV function |
S601A=Yes |
|||||||||
| 05 | Rep.module aerial lines RAM | TV3 | 1 | 61115A224A9 | Shop at ECS Tuning | |||||
| For vehicles with Personal eSIM |
S6PAA=Yes |
|||||||||
| 06 | Antenna line, telephone | L= 2925MM | 1 | 61115A86BB8 | NoS | Shop at ECS Tuning | ||||
| 07 | Antenna cable | L= 4401MM | 1 | 61115A86BC1 | NoS | Shop at ECS Tuning | ||||
| For vehicles with TV function |
S601A=Yes |
|||||||||
| 08 | Antenna cable TV | L= 2857MM | 1 | 61115A86BB9 | NoS | Shop at ECS Tuning | ||||
| 09 | Repair cable microphone | L= 6244MM | 1 | 61115A4CEF6 | Shop at ECS Tuning | |||||
| 10 | Repair cable microphone | L= 4995MM | 1 | 61115A86BE0 | NoS | Shop at ECS Tuning | ||||
| 11 | Repair module sheathed cable with shield | L= 3985MM | 1 | 61115A86BE2 | NoS | Shop at ECS Tuning | ||||
| 12 | Repair mod. antenna wire Dual Sim Active | L= 537MM | 1 | 61115A86A99 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
