Gr.cable + equip.bonding high-volt.con. for BMW 5 Series G99 M5 Touring M5 (2025)

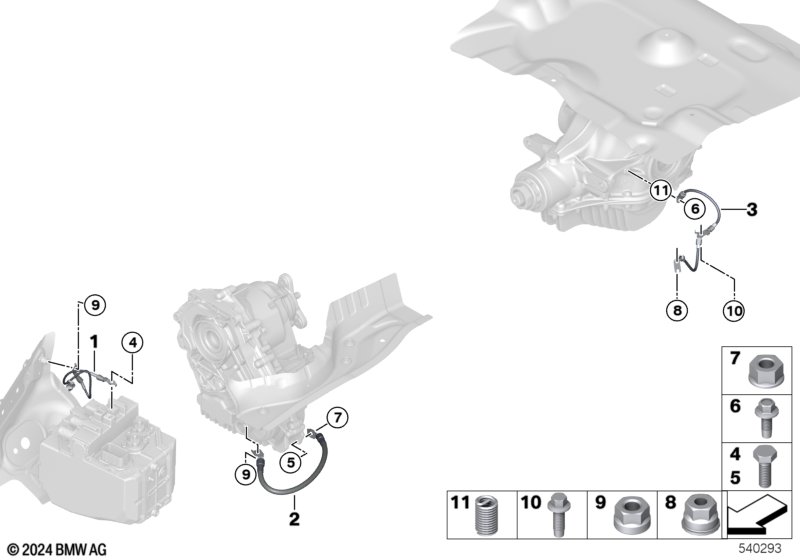

This Gr.cable + equip.bonding high-volt.con. technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ground cable CCU | RL | 1 | 61295A63B55 | Shop at ECS Tuning | |||||
| 02 | Wiring harness equipotential bonding | 1 | 61295B59703 | NoS | Shop at ECS Tuning | |||||
| 03 | Ground cable, potential equalization HAG | 1 | 61295A76DB6 | NoS | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 06 | Hexagon screw, self-threading | M6X16 | 1 | 37146869771 | Shop at ECS Tuning | |||||
| 07 | Flange nut | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Nut | 1 | 41009630135 | Shop at ECS Tuning | ||||||
| 09 | Flange nut | M8 | 2 | 07146952901 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X25 | 1 | 18309909376 | Shop at ECS Tuning | |||||
| 11 | Not offered by BMW | 1 | 84210300311 | ENDED | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
