Single parts for windshield cleaning for BMW 3 Series E46 330d (2004)

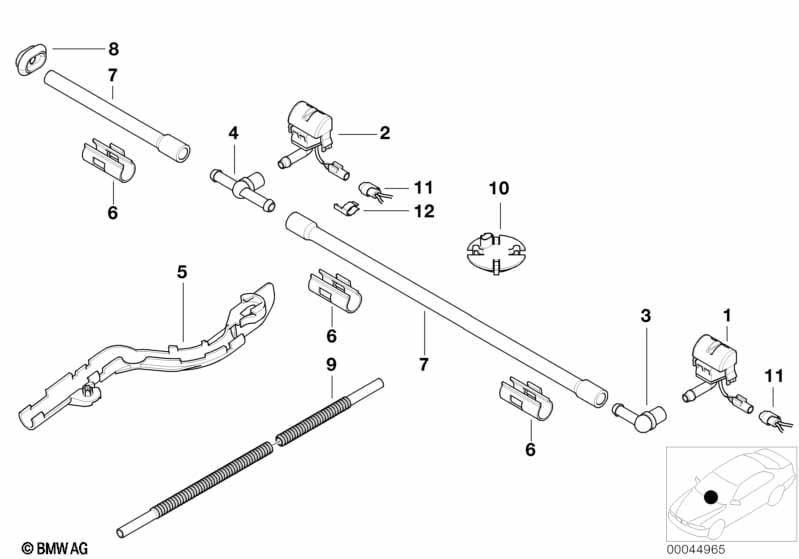

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heated left spray nozzle | 1 | 61668374365 | $37.35 | Shop at ECS Tuning | |||||
| 01 | Spray nozzle | 1 | 61667056732 | $7.02 | Shop at ECS Tuning | |||||
| 01 | Heated spray nozzle | 1 | 01/2002 | 61667056731 | $29.55 | Shop at ECS Tuning | ||||
| 02 | Heated right spray nozzle | 1 | 61668374366 | $37.35 | Shop at ECS Tuning | |||||
| 02 | Heated spray nozzle | 1 | 01/2002 | 61667056731 | $29.55 | Shop at ECS Tuning | ||||
| 02 | Spray nozzle | 1 | 61667056732 | $7.02 | Shop at ECS Tuning | |||||
| 03 | Support | 1 | 61668374371 | $1.12 | Shop at ECS Tuning | |||||
| 04 | T-Connector | 1 | 61668374372 | $1.12 | Shop at ECS Tuning | |||||
| 05 | Wiring duct, hood hinge | 1 | 61668362810 | $1.82 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 3 | 61668362763 | $0.33 | Shop at ECS Tuning | |||||
| 07 | Hose line | 13 | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 08 | Grommet | 30X41MM | 1 | 61138368494 | $1.83 | Shop at ECS Tuning | ||||
| 09 | Hose line | 1 | 61667007943 | $5.37 | Shop at ECS Tuning | |||||
| 10 | Thermo switch heatable spraying nozzle | 1 | 61318370747 | $32.46 | Shop at ECS Tuning | |||||
| 11 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| 12 | Holder | 2 | 61138372278 | $0.27 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Single parts for windshield cleaning?
- This technical diagram illustrates the Single parts for windshield cleaning within the Vehicle electrical system group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Heated left spray nozzle (Part #61668374365).
- Which models use the hardware listed in this Single parts for windshield cleaning?
- The hardware and components featured in the Single parts for windshield cleaning are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Heated left spray nozzle (61668374365) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for windshield cleaning assembly?
- Each item in the Single parts for windshield cleaning corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Heated left spray nozzle by locating its position on the schematic, which then links to the official BMW part number 61668374365 for the Vehicle electrical system section.
