B+ terminal point, engine compartment for BMW 3 Series E46 323i (2000)

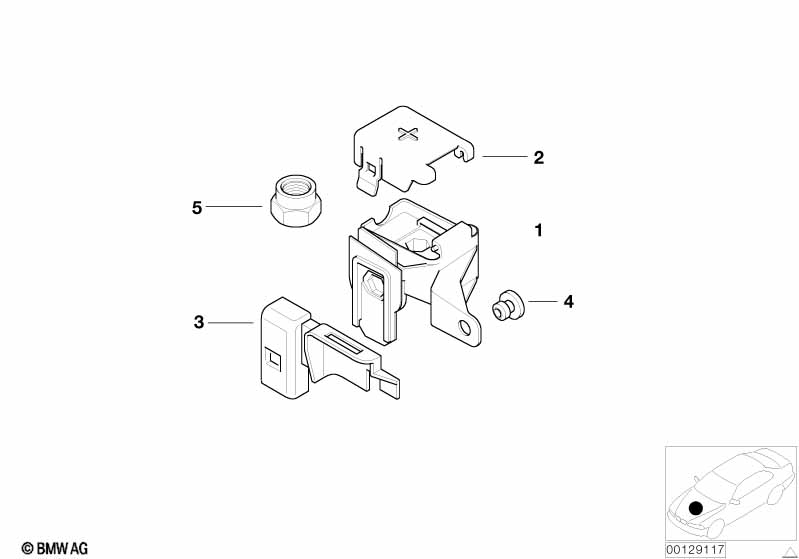

This B+ terminal point, engine compartment technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base B+ | 1 POL. | 1 | 09/1999 | 61138387540 | $5.43 | Shop at ECS Tuning | |||
| 02 | Cover base B+ | 1 | 61138371011 | $1.28 | Shop at ECS Tuning | |||||
| 03 | Holder, base B+ | 1 | 61138367769 | $1.80 | Shop at ECS Tuning | |||||
| 04 | Locating bolt | 1 | 61138377630 | $0.35 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8 | 1 | 07/2007 | 07149125856 | $1.33 | Shop at ECS Tuning | |||
| 05 | Nut | M6 | 1 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8 | 1 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8 | 1 | 07149125856 | $1.33 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323i B+ terminal point, engine compartment?
- This technical diagram illustrates the B+ terminal point, engine compartment within the Vehicle electrical system group for the 3 Series E46 323i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Base B+ (Part #61138387540).
- Which models use the hardware listed in this B+ terminal point, engine compartment?
- The hardware and components featured in the B+ terminal point, engine compartment are specific to the 3 Series E46 323i produced during 2000. These technical specifications ensure that parts like the Base B+ (61138387540) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the B+ terminal point, engine compartment assembly?
- Each item in the B+ terminal point, engine compartment corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Base B+ by locating its position on the schematic, which then links to the official BMW part number 61138387540 for the Vehicle electrical system section.
