Wiring harness, instrument panel for BMW 2 Series F74 Gran Coupé 218 (2025)

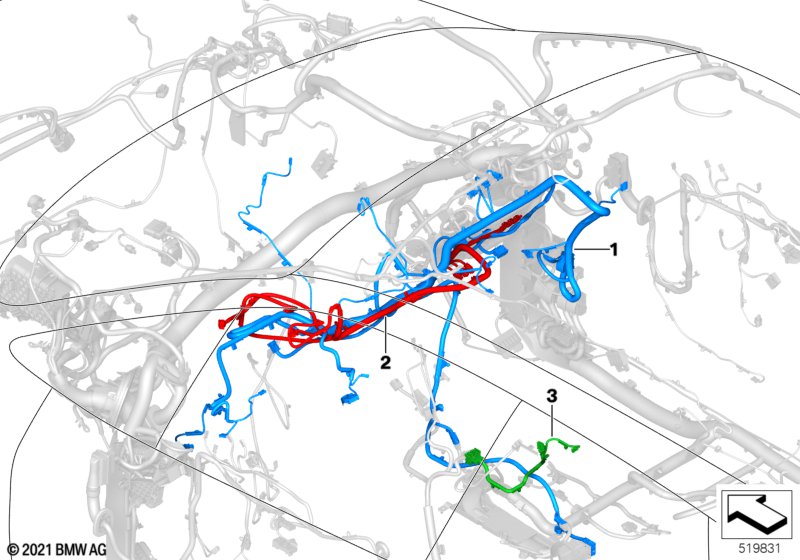

This Wiring harness, instrument panel technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, instrument panel | 1 | 61125B52456 | NoS | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Wiring harness, instrument panel | 1 | 11/2024 | 61125B52474 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Wiring harness, instrument panel | 1 | 61125B52468 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
S230A=Yes S8LTA=Yes |
|||||||||
| 01 | Wiring harness, instrument panel | 1 | 61125B52460 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
S230A=Yes S8LTA=No |
|||||||||
| 01 | Wiring harness, instrument panel | 1 | 61125B52460 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific and Country-specific equipment Taiwan 04825 |
S230A=No S8LTA=Yes |
|||||||||
| 01 | Wiring harness, instrument panel | 1 | 61125B52460 | NoS | Shop at ECS Tuning | |||||
| 02 | HSD wire I-cluster/Head Up display | 1 | 61125B3DBB3 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
