Rep.cable f.main wiring harness - front for BMW 2 Series F74 Gran Coupé 218 (2025)

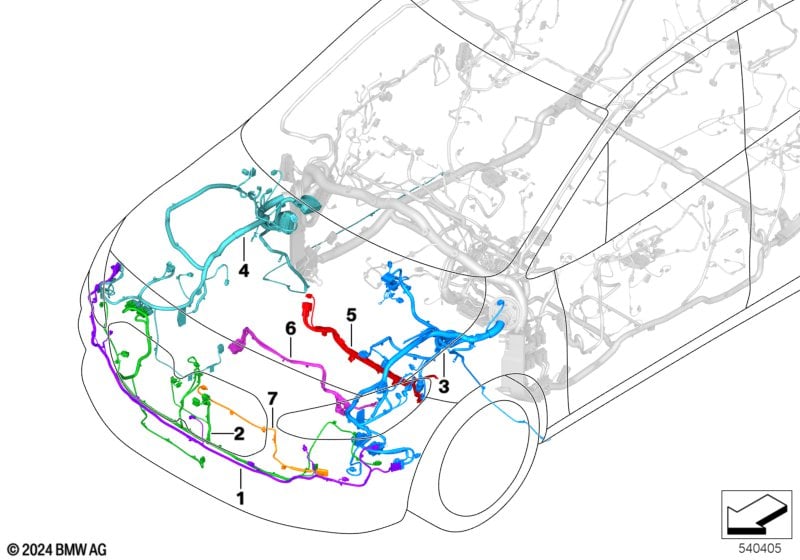

This Rep.cable f.main wiring harness - front technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, front bumper | 1 | 61125B3DBD6 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 01 | Wiring harness, front bumper | 1 | 61125B3DBE0 | NoS | Shop at ECS Tuning | |||||
| 02 | Wiring harness front end | 1 | 61125B3FE60 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 02 | Wiring harness front end | 1 | 61125B3FE61 | NoS | Shop at ECS Tuning | |||||
| 03 | Front left repair wiring set | 1 | 61125B62778 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 03 | Front left repair wiring set | 1 | 61125B62779 | NoS | Shop at ECS Tuning | |||||
| 04 | Front right repair wiring set | 1 | 61125B62773 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant |
S5ASA=Yes |
|||||||||
| 04 | Front right repair wiring set | 1 | 61125B62774 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 04 | Front right repair wiring set | 1 | 61125B62775 | NoS | Shop at ECS Tuning | |||||
| 05 | Repair cable EPS | 1 | 61115A8BE04 | NoS | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adapter lead EPS | 1 | 61125A98AC9 | NoS | Shop at ECS Tuning | |||||
| 06 | Repair wiring harness electric fan | 400W | 1 | 61115B43F71 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=Yes |
|||||||||
| 06 | Repair wiring harness electric fan | 600W | 1 | 61115B43F69 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=Yes S823A=No |
|||||||||
| 06 | Repair wiring harness electric fan | 600W | 1 | 61115B43F69 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and Hot-climate version |
S235A=No S823A=Yes |
|||||||||
| 06 | Repair wiring harness electric fan | 600W | 1 | 61115B43F69 | NoS | Shop at ECS Tuning | ||||
| 07 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
