Repair cable main wiring harn.shielded for BMW 2 Series F74 Gran Coupé 220 (2025)

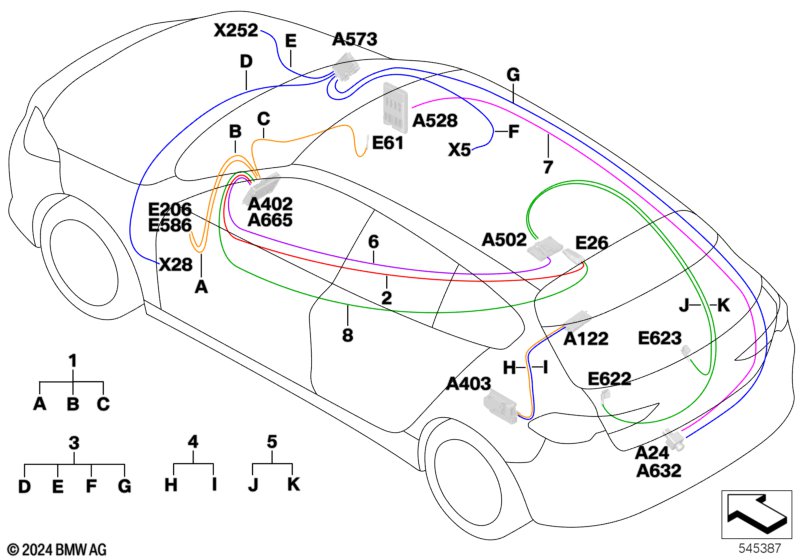

This Repair cable main wiring harn.shielded technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep.module antenna wire Wi-Fi/Bluetooth® | 1 | 61115B44206 | NoS | Shop at ECS Tuning | |||||
| 02 | Antenna cable GPS | 1 | 61115B44207 | NoS | Shop at ECS Tuning | |||||
| 03 | Repair module, sheathed cable | 1 | 61115B52973 | NoS | Shop at ECS Tuning | |||||
| 04 | Rep.module aerial lines AM/ FM2 | 1 | 61115B527F1 | NoS | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 04 | Rep.module antennas DAB | 1 | 61115B527F2 | NoS | Shop at ECS Tuning | |||||
| 05 | Repair module, sheathed cable | 1 | 61115B43FB8 | NoS | Shop at ECS Tuning | |||||
| 06 | Repair module, sheathed cable | 1 | 61115B44291 | NoS | Shop at ECS Tuning | |||||
| 06 | Cable for Ethernet | L= 6874MM | 1 | 61115A94EB6 | Shop at ECS Tuning | |||||
| 07 | Repair module, sheathed cable | 1 | 61115B52976 | NoS | Shop at ECS Tuning | |||||
| 08 | Antenna cable SDARS | L= 2455MM | 1 | 61115B52857 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
