Repair cable main wiring harn.shielded for BMW 4 Series G22 Coupé 420i (2024)

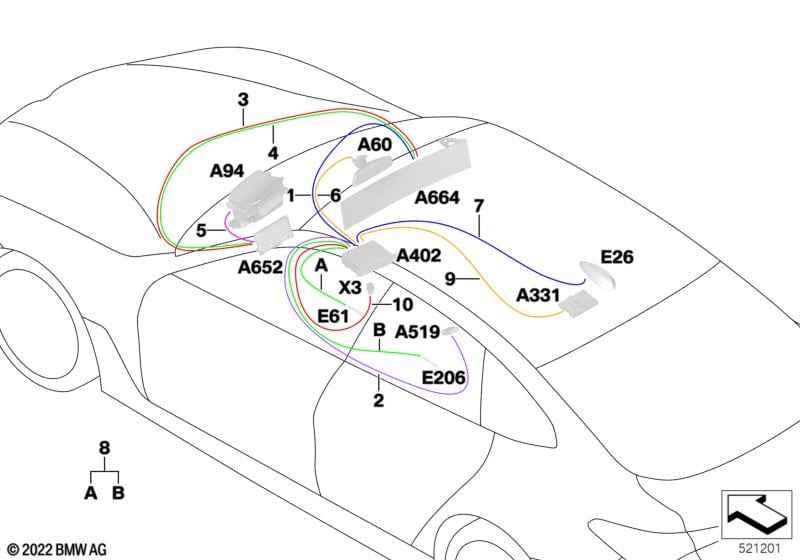

This Repair cable main wiring harn.shielded technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | HSD wire | L= 1035MM | 1 | 03/2023 | 61115A45A47 | Shop at ECS Tuning | ||||
| 03 | Repair module sheathed cable with shield | L= 1955MM | 1 | 03/2023 | 61115A45A46 | Shop at ECS Tuning | ||||
| 04 | HSD wire | L= 2236MM | 1 | 03/2023 | 61115A45A50 | Shop at ECS Tuning | ||||
| 05 | HSD wire | L= 1030MM | 1 | 03/2023 | 61115A45A56 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | HSD line interior rear view mirror | L= 4235MM | 1 | 03/2023 | 61115A11C25 | Shop at ECS Tuning | ||||
| 07 | Antenna cable GPS | L=4865MM | 1 | 03/2023 | 61115A11B40 | Shop at ECS Tuning | ||||
| 08 | Rep.module antenna wire Wi-Fi/Bluetooth® | L= 1158MM | 1 | 03/2023 | 07/2024 | 61115A84880 | NoS | Shop at ECS Tuning | ||
| 08 | Rep.module antenna wire Wi-Fi/Bluetooth® | L= 1158 MM | 1 | 03/2023 | 61115A71963 | Shop at ECS Tuning | ||||
| 10 | HSD line HU - USB/AUX | L= 926MM | 1 | 03/2023 | 61115A11C45 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 420i Repair cable main wiring harn.shielded?
- This technical diagram illustrates the Repair cable main wiring harn.shielded within the Vehicle electrical system group for the 4 Series G22 Coupé 420i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the HSD wire (Part #61115A45A47).
- Which models use the hardware listed in this Repair cable main wiring harn.shielded?
- The hardware and components featured in the Repair cable main wiring harn.shielded are specific to the 4 Series G22 Coupé 420i produced during 2024. These technical specifications ensure that parts like the HSD wire (61115A45A47) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Repair cable main wiring harn.shielded assembly?
- Each item in the Repair cable main wiring harn.shielded corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 420i, you can identify the HSD wire by locating its position on the schematic, which then links to the official BMW part number 61115A45A47 for the Vehicle electrical system section.
