Repair cable, camera network for BMW 5 Series G60 Sedan 530e (2025)

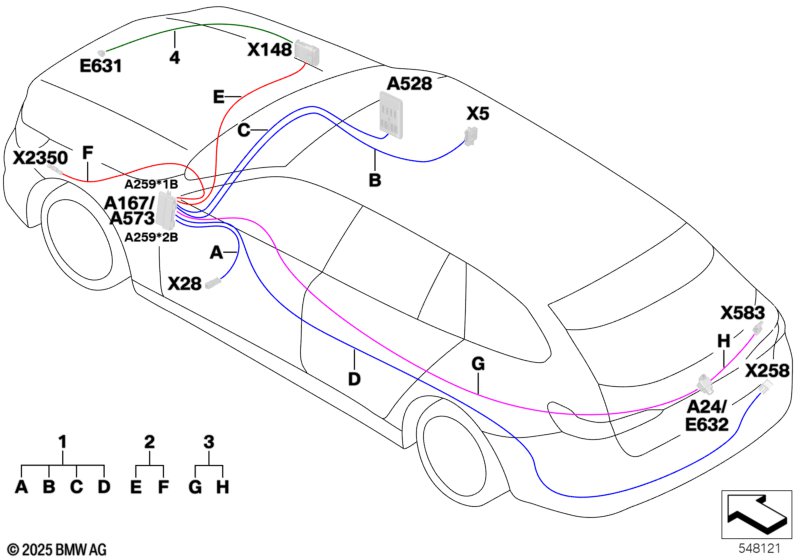

This Repair cable, camera network technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair module, camera network | L= 7052MM | 1 | 61115A8D022 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=Yes |
|||||||||
| 02 | Repair cable sheathed cable with shield | L= 4134MM | 1 | 61115A99D88 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=Yes S5DWA=No |
|||||||||
| 02 | Repair cable sheathed cable with shield | L= 4134MM | 1 | 61115A99D88 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system Plus and Parking assistant professional |
S5DNA=No S5DWA=Yes |
|||||||||
| 02 | Repair cable sheathed cable with shield | L= 4134MM | 1 | 61115A99D88 | Shop at ECS Tuning | |||||
| 03 | Repair cable sheathed cable with shield | L= 6304MM | 1 | 61115A99CE2 | Shop at ECS Tuning | |||||
| 04 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
