Control symbol for BMW 3 Series E21 320i (1977)

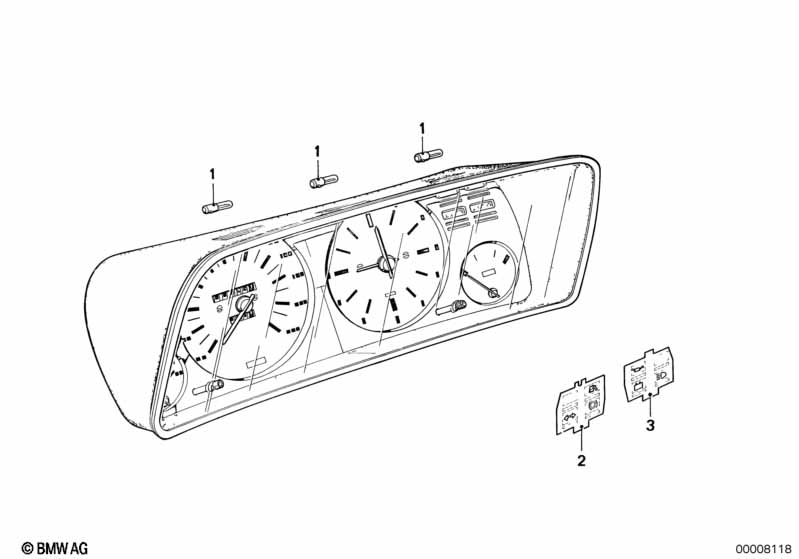

This Control symbol technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 02 | Control symbol light left | 1 | 09/1978 | 62111363681 | ENDED | Shop at ECS Tuning | ||||
| 03 | Control symbol light right | 1 | 62111363683 | $3.27 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Control symbol?
- This technical diagram illustrates the Control symbol within the Instruments, Measuring systems group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Bulb (Part #63217167000).
- Which models use the hardware listed in this Control symbol?
- The hardware and components featured in the Control symbol are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Bulb (63217167000) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control symbol assembly?
- Each item in the Control symbol corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Bulb by locating its position on the schematic, which then links to the official BMW part number 63217167000 for the Instruments, Measuring systems section.
