Tachometer/clock for BMW 3 Series E21 320 (1982)

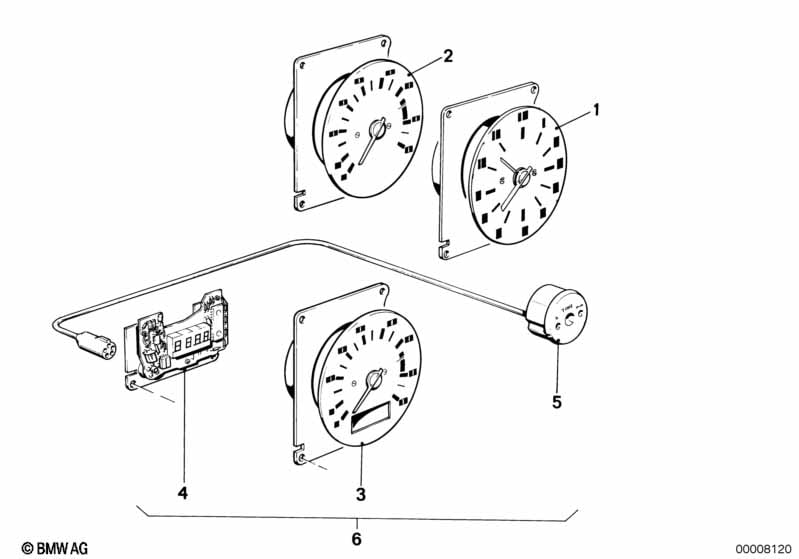

This Tachometer/clock technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Revolution counter | VDO | 1 | 08/1979 | 62131368248 | $296.86 | Shop at ECS Tuning | |||
| 03 | Revolution counter | MOTO METER | 1 | 08/1979 | 62131368249 | $296.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Digital clock | 24H VDO | 1 | 08/1979 | 62131367276 | ENDED | Shop at ECS Tuning | |||
| 04 | Digital clock | 24H MOTOMETER | 1 | 08/1979 | 62131367277 | ENDED | Shop at ECS Tuning | |||
| 05 | Setting unit digital clock | 1 | 08/1979 | 62131366826 | $35.23 | ENDED | Shop at ECS Tuning | |||
| 05 | Setting unit digital clock | 1 | 08/1979 | 62131366826 | $35.23 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Tachometer/clock?
- This technical diagram illustrates the Tachometer/clock within the Instruments, Measuring systems group for the 3 Series E21 320 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Revolution counter (Part #62131368248).
- Which models use the hardware listed in this Tachometer/clock?
- The hardware and components featured in the Tachometer/clock are specific to the 3 Series E21 320 produced during 1982. These technical specifications ensure that parts like the Revolution counter (62131368248) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tachometer/clock assembly?
- Each item in the Tachometer/clock corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Revolution counter by locating its position on the schematic, which then links to the official BMW part number 62131368248 for the Instruments, Measuring systems section.
